Harwin

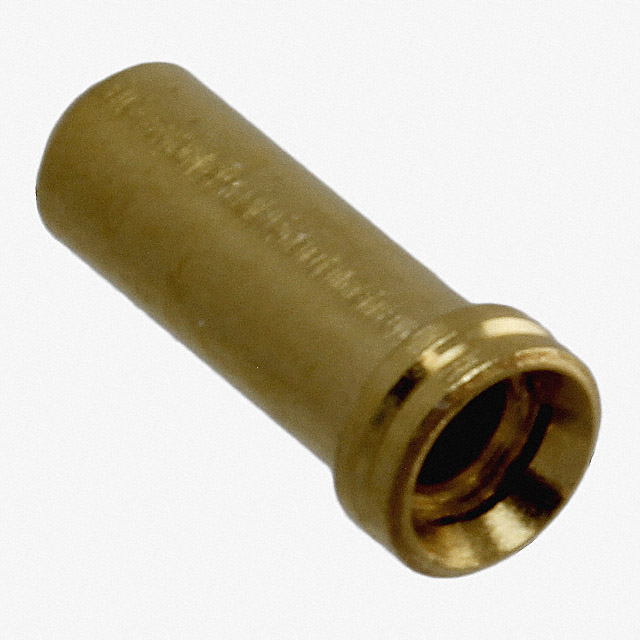

| Part Number | H8504-05 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN PIN RCPT .024-.033 SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 181442 pcs | Data sheet | 1.H8504-05.pdf2.H8504-05.pdf |
| Termination | Solder | Tail Type | No Tail |
| Tail Diameter | - | Socket Depth | 0.183" (4.65mm) |
| Series | - | Pin Hole Diameter | - |
| Packaging | Bulk | Other Names | 952-2025 H8504-05-ND H850405 Q7191525 |
| Operating Temperature | -55°C ~ 125°C | Mounting Hole Diameter | 0.075" ~ 0.079" (1.91mm ~ 2.01mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.224" (5.69mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Force | 1.50N ~ 5.01N | Flange Diameter | 0.093" (2.36mm) |
| Features | - | Detailed Description | Pin Receptacle Connector 0.024" ~ 0.033" (0.61mm ~ 0.85mm) No Tail Solder |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 5.90µin (0.150µm) |
| Contact Finish | Gold | Board Thickness | - |
| Accepts Square Pin Size | - | Accepts Pin Diameter | 0.024" ~ 0.033" (0.61mm ~ 0.85mm) |
