H3183-05

Harwin

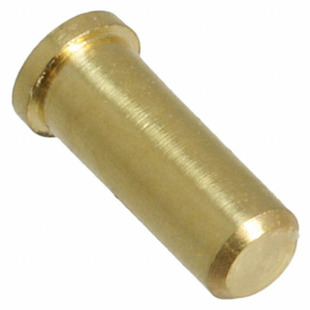

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H3183-05
Manufacturer/Brand:	Harwin
Product description	CONN PIN RCPT .035-.041 SOLDER
Datasheets:	1.H3183-05.pdf 2.H3183-05.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	225953 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 225953 pcs

Reference Price (In US Dollars)

1 pcs: $0.17

10 pcs: $0.162

25 pcs: $0.139

50 pcs: $0.118

100 pcs: $0.113

250 pcs: $0.102

500 pcs: $0.097

1000 pcs: $0.081

2500 pcs: $0.074

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.17

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H3183-05

Part Number	H3183-05	Manufacturer	Harwin
Description	CONN PIN RCPT .035-.041 SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	225953 pcs	Data sheet	1.H3183-05.pdf 2.H3183-05.pdf
Termination	Solder	Tail Type	No Tail
Tail Diameter	-	Socket Depth	0.140" (3.56mm)
Series	-	Pin Hole Diameter	-
Packaging	Bulk	Other Names	952-2207 H318305
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.075" ~ 0.079" (1.91mm ~ 2.01mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.207" (5.26mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Force	3.00N ~ 9.00N	Flange Diameter	0.092" (2.34mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.035" ~ 0.041" (0.89mm ~ 1.05mm) No Tail Solder
Contact Material	Beryllium Copper	Contact Finish Thickness	5.90µin (0.150µm)
Contact Finish	Gold	Board Thickness	-
Accepts Square Pin Size	-	Accepts Pin Diameter	0.035" ~ 0.041" (0.89mm ~ 1.05mm)
