Harwin

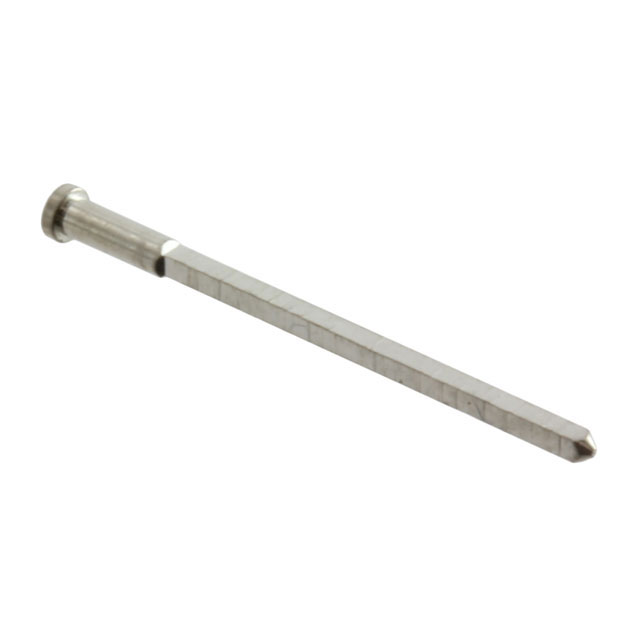

| Part Number | H3175-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN PIN RCPT .016-.021 PRESSFIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 141667 pcs | Data sheet | 1.H3175-01.pdf2.H3175-01.pdf |
| Termination | Press-Fit | Tail Type | Wire Wrap |
| Tail Diameter | 0.025" (0.64mm) | Socket Depth | 0.128" (3.25mm) |
| Series | - | Pin Hole Diameter | - |
| Packaging | Bulk | Other Names | 952-2379 H3175-01-ND H317501 |
| Operating Temperature | -55°C ~ 125°C | Mounting Hole Diameter | 0.039" ~ 0.043" (0.99mm ~ 1.09mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 7 Weeks |
| Length - Overall | 0.656" (16.66mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Force | 6.00N | Flange Diameter | 0.019" (0.48mm) |
| Features | - | Detailed Description | Pin Receptacle Connector 0.016" ~ 0.021" (0.41mm ~ 0.53mm) Wire Wrap Press-Fit |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Board Thickness | - |
| Accepts Square Pin Size | - | Accepts Pin Diameter | 0.016" ~ 0.021" (0.41mm ~ 0.53mm) |
