H3070-01

Harwin

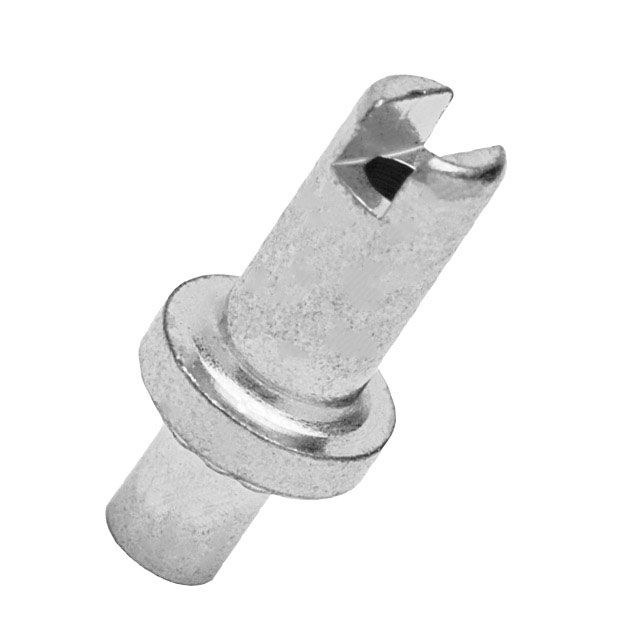

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H3070-01
Manufacturer/Brand:	Harwin
Product description	TERM TURRET HOLLOW L=6.25-6.63MM
Datasheets:	H3070-01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	410713 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 410713 pcs

Reference Price (In US Dollars)

12000 pcs: $0.091

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.091

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H3070-01

Part Number	H3070-01	Manufacturer	Harwin
Description	TERM TURRET HOLLOW L=6.25-6.63MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	410713 pcs	Data sheet	H3070-01.pdf
Termination	Swage	Terminal Type	Single End, Fork, Hollow
Staking Side OD	0.076" ~ 0.079" (1.93mm ~ 2.01mm)	Staking Side ID	-
Series	-	Number of Turrets	Single
Mounting Type	Through Hole	Mounting Hole Diameter	0.080" ~ 0.083" (2.03mm ~ 2.11mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	-
Manufacturer Standard Lead Time	7 Weeks	Length - Overall	0.340" ~ 0.360" (8.64mm ~ 9.15mm)
Length - Below Flange	0.094" ~ 0.099" (2.39mm ~ 2.51mm)	Length - Above Board	0.246" ~ 0.261" (6.25mm ~ 6.63mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Insulation	Non-Insulated	Flange Diameter	0.153" ~ 0.159" (3.88mm ~ 4.04mm)
Diameter - Turret Head	-	Detailed Description	Terminal Turret Connector Single End, Fork, Hollow 0.246" ~ 0.261" (6.25mm ~ 6.63mm) Tin
Contact Material	Brass Alloy	Contact Finish Thickness	-
Contact Finish	Tin	Board Thickness	0.063" (1.60mm)
