Harwin

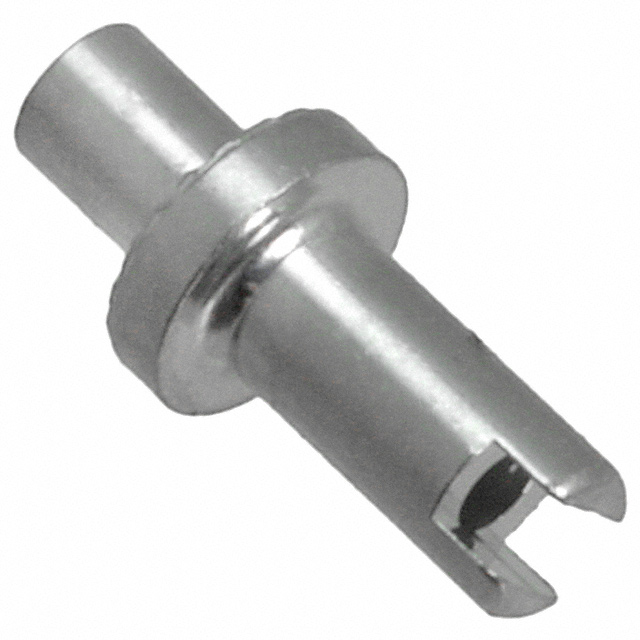

| Part Number | H3051-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | TERM TURRET HOLLOW L=6.27-6.6MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 378308 pcs | Data sheet | H3051-01.pdf |
| Termination | Swage | Terminal Type | Single End, Fork, Hollow |
| Staking Side OD | 0.080" ~ 0.083" (2.03mm ~ 2.12mm) | Staking Side ID | - |
| Series | - | Other Names | 952-2173 H305101 |
| Number of Turrets | Single | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.084" ~ 0.087" (2.13mm ~ 2.21mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 7 Weeks |
| Length - Overall | 0.346" ~ 0.354" (8.79mm ~ 8.99mm) | Length - Below Flange | 0.094" ~ 0.099" (2.39mm ~ 2.51mm) |
| Length - Above Board | 0.247" ~ 0.260" (6.27mm ~ 6.60mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.153" ~ 0.159" (3.88mm ~ 4.04mm) | Diameter - Turret Head | - |
| Detailed Description | Terminal Turret Connector Single End, Fork, Hollow 0.247" ~ 0.260" (6.27mm ~ 6.60mm) Tin | Contact Material | Brass Alloy |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Board Thickness | 0.063" (1.60mm) |
