Harwin

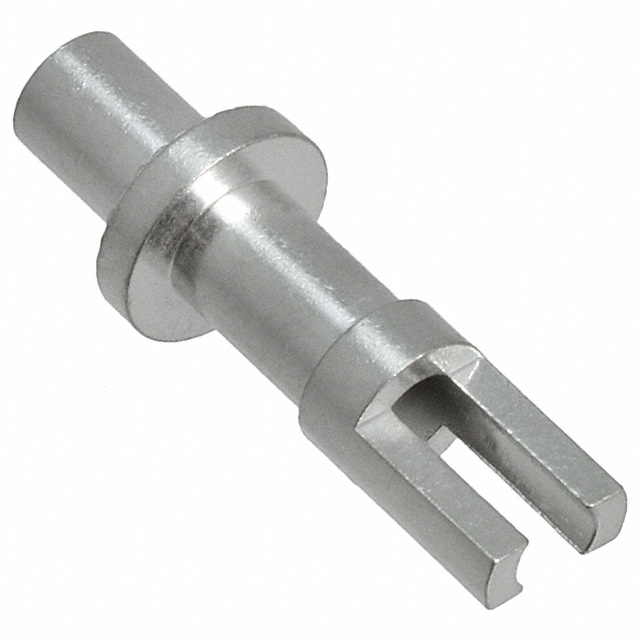

| Part Number | H2039-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | TERM TURRET HOLLOW L=12.7MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 125751 pcs | Data sheet | 1.H2039-01.pdf2.H2039-01.pdf |
| Termination | Swage | Terminal Type | Single End, Fork, Hollow |
| Staking Side OD | 0.122" ~ 0.125" (3.10mm ~ 3.18mm) | Staking Side ID | 0.086" ~ 0.089" (2.18mm ~ 2.26mm) |
| Series | - | Other Names | 952-2291 H203901 |
| Number of Turrets | Single | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.126" ~ 0.129" (3.19mm ~ 3.28mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.656" (16.66mm) | Length - Below Flange | 0.156" ~ 0.161" (3.96mm ~ 4.09mm) |
| Length - Above Board | 0.500" (12.70mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.219" (5.56mm) | Diameter - Turret Head | 0.151" ~ 0.156" (3.83mm ~ 3.96mm) |
| Detailed Description | Terminal Turret Connector Single End, Fork, Hollow 0.500" (12.70mm) Tin | Contact Material | Brass Alloy |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Board Thickness | 0.126" (3.20mm) |
