H20307RR05Q

C&K

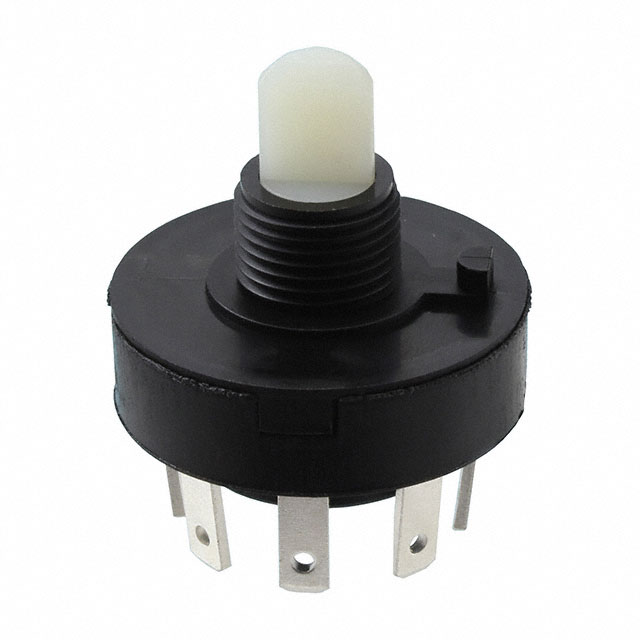

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H20307RR05Q
Manufacturer/Brand:	C&K
Product description	SWITCH ROTARY 3POS 12A 125V
Datasheets:	H20307RR05Q.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20189 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 20189 pcs

Reference Price (In US Dollars)

1 pcs: $1.835

10 pcs: $1.759

25 pcs: $1.605

50 pcs: $1.529

100 pcs: $1.376

250 pcs: $1.261

500 pcs: $1.223

1000 pcs: $1.185

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.835

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H20307RR05Q

Part Number	H20307RR05Q	Manufacturer	C&K
Description	SWITCH ROTARY 3POS 12A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20189 pcs	Data sheet	H20307RR05Q.pdf
Voltage Rating - DC	125V	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.110" (2.8mm)	Series	H
Panel Cutout Dimensions	Circular - 9.78mm Dia	Other Names	*H20307RR05Q CKN10958 H20307RR05Q-ND
Operating Force	-	Number of Positions	3
Number of Poles per Deck	2	Number of Decks	1
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Index Stops	Fixed	Features	-
Detailed Description	Rotary Switch 3 Position DP3T 12A (AC), 1A (DC) 125VAC Panel Mount	Depth Behind Panel	15.25mm
Current Rating	12A (AC), 1A (DC)	Contact Timing	Not Specified
Contact Material	Copper	Contact Finish	Silver
Circuit per Deck	DP3T	Angle of Throw	45°
Actuator Type	Flatted (6.35mm Dia)	Actuator Length	7.29mm
