SP0503BAHTG

Hamlin / Littelfuse

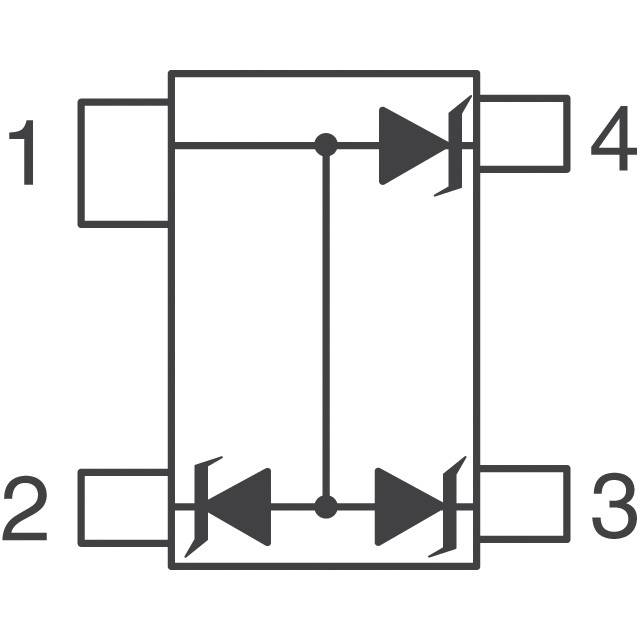

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SP0503BAHTG
Manufacturer/Brand:	Hamlin / Littelfuse
Product description	TVS DIODE 5.5V 8.5V SOT143-4
Datasheets:	SP0503BAHTG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	251050 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 251050 pcs

Reference Price (In US Dollars)

3000 pcs: $0.117

6000 pcs: $0.109

15000 pcs: $0.108

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.117

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SP0503BAHTG

Part Number	SP0503BAHTG	Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 5.5V 8.5V SOT143-4	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	251050 pcs	Data sheet	SP0503BAHTG.pdf
Voltage - Reverse Standoff (Typ)	5.5V (Max)	Voltage - Clamping (Max) @ Ipp	8.5V
Voltage - Breakdown (Min)	-	Unidirectional Channels	3
Type	Zener	Supplier Device Package	SOT-143-4
Series	SP05, SPA®	Power Line Protection	No
Power - Peak Pulse	-	Packaging	Tape & Reel (TR)
Package / Case	TO-253-4, TO-253AA	Other Names	F2715TR
Operating Temperature	-40°C ~ 85°C (TA)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Current - Peak Pulse (10/1000µs)	-
Capacitance @ Frequency	-	Applications	General Purpose
