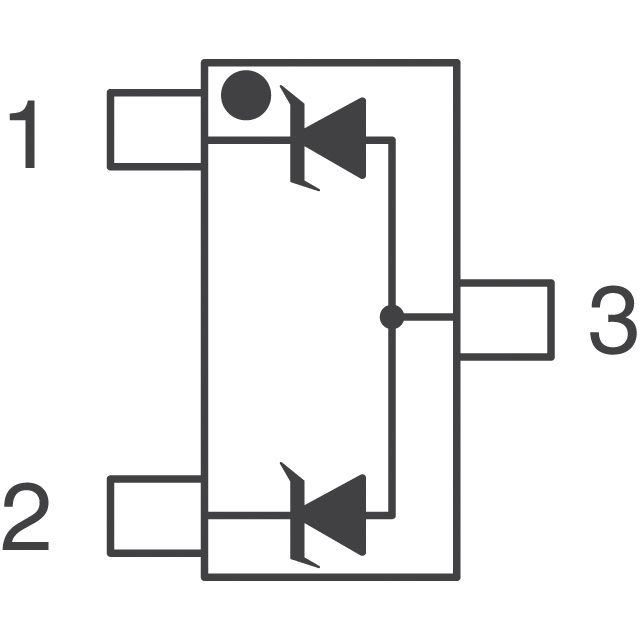

SP0502BAHTG

Hamlin / Littelfuse

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SP0502BAHTG
Manufacturer/Brand:	Hamlin / Littelfuse
Product description	TVS DIODE 5.5V 8.5V SOT23-3
Datasheets:	SP0502BAHTG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	113842 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 113842 pcs

Reference Price (In US Dollars)

1 pcs: $0.278

10 pcs: $0.242

25 pcs: $0.214

100 pcs: $0.187

250 pcs: $0.163

500 pcs: $0.138

1000 pcs: $0.111

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.278

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SP0502BAHTG

Part Number	SP0502BAHTG	Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 5.5V 8.5V SOT23-3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	113842 pcs	Data sheet	SP0502BAHTG.pdf
Voltage - Reverse Standoff (Typ)	5.5V (Max)	Voltage - Clamping (Max) @ Ipp	8.5V
Voltage - Breakdown (Min)	-	Unidirectional Channels	2
Type	Zener	Supplier Device Package	SOT-23-3
Series	SP05, SPA®	Power Line Protection	No
Power - Peak Pulse	-	Packaging	Original-Reel®
Package / Case	TO-236-3, SC-59, SOT-23-3	Other Names	F2714DKR
Operating Temperature	-40°C ~ 85°C (TA)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Current - Peak Pulse (10/1000µs)	-
Capacitance @ Frequency	-	Applications	General Purpose
