MG1275W-XBN2MM

Hamlin / Littelfuse

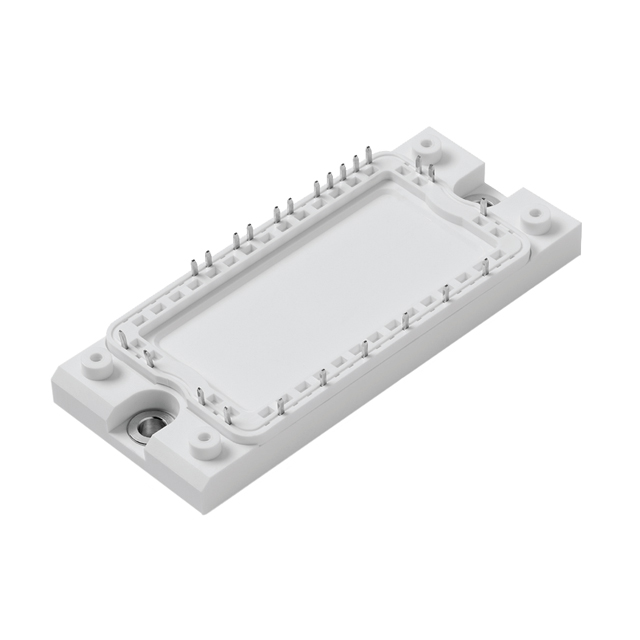

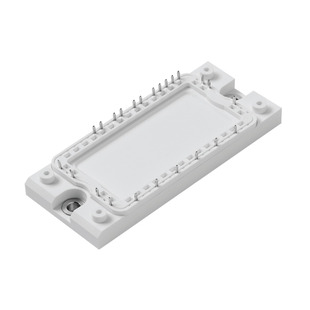

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MG1275W-XBN2MM
Manufacturer/Brand:	Hamlin / Littelfuse
Product description	IGBT MOD 1200V 75A PKG W CRCT:XB
Datasheets:	MG1275W-XBN2MM.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	662 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 662 pcs

Reference Price (In US Dollars)

1 pcs: $47.752

10 pcs: $44.632

25 pcs: $43.071

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$47.752

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MG1275W-XBN2MM

Part Number	MG1275W-XBN2MM	Manufacturer	Hamlin / Littelfuse
Description	IGBT MOD 1200V 75A PKG W CRCT:XB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	662 pcs	Data sheet	MG1275W-XBN2MM.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	1.7V @ 15V, 75A
Supplier Device Package	Module	Series	-
Power - Max	348W	Package / Case	Module
Other Names	F6705 MG1275W-XBN2MM-ND	Operating Temperature	-40°C ~ 125°C (TJ)
NTC Thermistor	Yes	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Cies) @ Vce	5.3nF @ 25V
Input	Three Phase Bridge Rectifier	IGBT Type	-
Detailed Description	IGBT Module Three Phase Inverter with Brake 1200V 105A 348W Chassis Mount Module	Current - Collector Cutoff (Max)	1mA
Current - Collector (Ic) (Max)	105A	Configuration	Three Phase Inverter with Brake
