MG1275S-BA1MM

Hamlin / Littelfuse

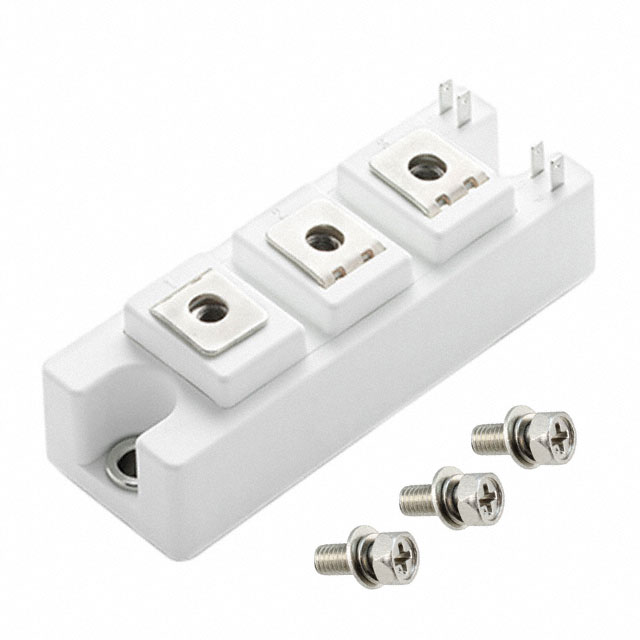

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MG1275S-BA1MM
Manufacturer/Brand:	Hamlin / Littelfuse
Product description	IGBT 1200V 105A 630W PKG S
Datasheets:	MG1275S-BA1MM.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1540 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1540 pcs

Reference Price (In US Dollars)

1 pcs: $23.582

10 pcs: $22.195

25 pcs: $20.807

100 pcs: $19.836

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$23.582

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MG1275S-BA1MM

Part Number	MG1275S-BA1MM	Manufacturer	Hamlin / Littelfuse
Description	IGBT 1200V 105A 630W PKG S	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1540 pcs	Data sheet	MG1275S-BA1MM.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	1.8V @ 15V, 75A (Typ)
Supplier Device Package	S3	Series	-
Power - Max	630W	Package / Case	S-3 Module
Other Names	F6495	Operating Temperature	-40°C ~ 150°C (TJ)
NTC Thermistor	No	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Cies) @ Vce	5.52nF @ 25V
Input	Standard	IGBT Type	-
Detailed Description	IGBT Module Half Bridge 1200V 105A 630W Chassis Mount S3	Current - Collector Cutoff (Max)	500µA
Current - Collector (Ic) (Max)	105A	Configuration	Half Bridge
