HARTING

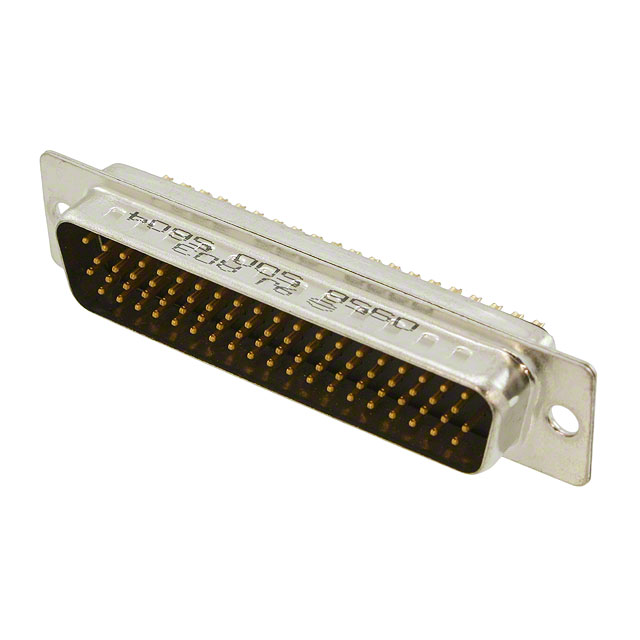

| Part Number | 09565005604 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN D-SUB HD PLUG 78POS STR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9304 pcs | Data sheet | 09565005604.pdf |
| Wire Gauge | - | Voltage Rating | - |
| Termination | Solder Cup | Shell Size, Connector Layout | 5 (DD, D) High Density |
| Shell Material, Finish | Steel, Nickel Plated | Series | - |
| Packaging | Bulk | Other Names | 09 56 500 5604 1195-2343 9565005604 |
| Operating Temperature | -40°C ~ 85°C | Number of Rows | 4 |
| Number of Positions | 78 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) | Features | Grounding Indents |
| Detailed Description | 78 Position D-Sub, High Density Plug, Male Pins Connector | Current Rating | 2A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | Stamped | Contact Finish Thickness | - |
| Contact Finish | - | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub, High Density | Color | Black |
| Backset Spacing | - |
