09565005601

HARTING

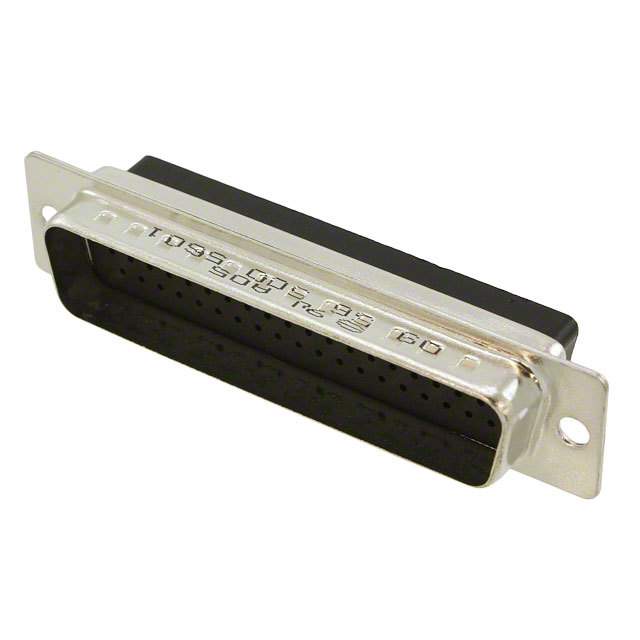

Image may be representation. See specifications for product details.

Product Overview

Part Number:	09565005601
Manufacturer/Brand:	HARTING
Product description	DSUB HD MA CRIMP SHELL 78P
Datasheets:	09565005601.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7474 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7474 pcs

Reference Price (In US Dollars)

1 pcs: $3.988

10 pcs: $3.627

25 pcs: $3.536

50 pcs: $3.264

100 pcs: $3.083

250 pcs: $2.811

500 pcs: $2.629

1000 pcs: $2.412

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$3.988

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 09565005601

Part Number	09565005601	Manufacturer	HARTING
Description	DSUB HD MA CRIMP SHELL 78P	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7474 pcs	Data sheet	09565005601.pdf
Shell Size, Connector Layout	5 (DD, D) High Density	Shell Material, Finish	Steel, Tin Plated
Shell Finish Thickness	-	Series	-
Packaging	Bulk	Other Names	1195-2342 9565005601
Operating Temperature	-55°C ~ 105°C	Number of Rows	4
Number of Positions	78	Note	Contacts Not Included
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	-	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Flange Feature	Housing/Shell (Unthreaded)	Features	Grounding Indents
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Detailed Description	Plug for Male Contacts Housing D-Sub, High Density Connector 78 Position
Contact Type	Signal	Connector Type	Plug for Male Contacts
Connector Style	D-Sub, High Density	Color	-
