EPCOS
| Part Number | B65811J0000R087 | Manufacturer | EPCOS |
|---|---|---|---|

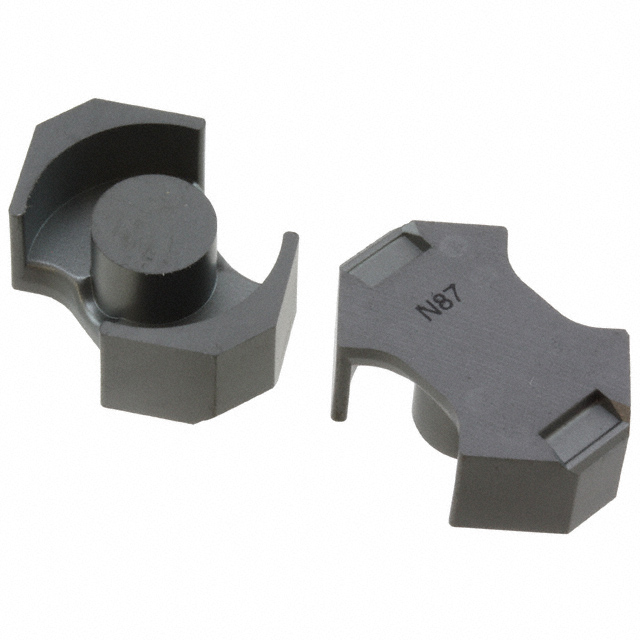

| Description | FERRITE CORE RM 3.3UH N87 2PCS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71006 pcs | Data sheet | B65811J0000R087.pdf |
| Width | 11.00mm | Tolerance | -20%, +30% |
| Supplier Device Package | RM 8 | Series | B65811 |
| Other Names | 495-5260 B65811J R 87 B65811JR87 B65811JR87-ND |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Minimum Core Cross Section (Amin) mm² | 55 | Material | N87 |
| Manufacturer Standard Lead Time | 24 Weeks | Length | 23.20mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Initial Permeability (µi) | 2200 |
| Inductance Factor (Al) | 3.3µH | Height | 8.25mm |
| Gap | Ungapped | Finish | Uncoated |
| Effective Permeability (µe) | 1560 | Effective Magnetic Volume (Ve) mm³ | 2430 |
| Effective Length (le) mm | 38 | Effective Area (Ae) mm² | 64 |
| Diameter | - | Core Type | RM |
| Core Factor (ΣI/A) mm1 | 0.59 |
