E-Switch

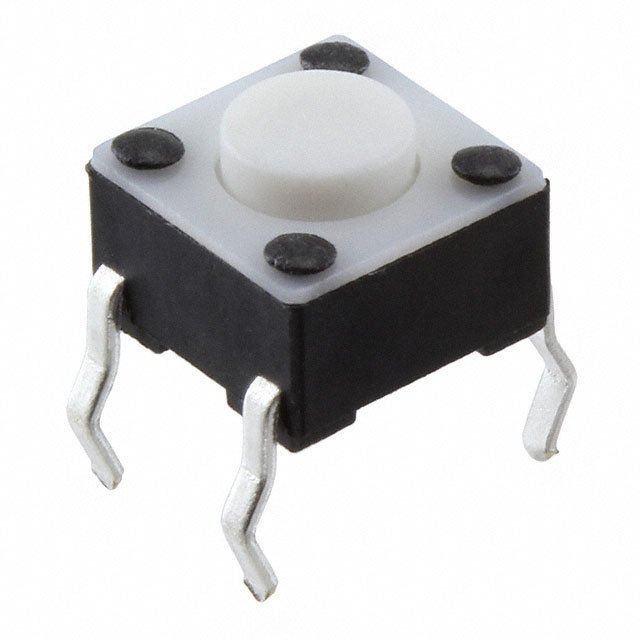

| Part Number | TL1105F160Q | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 513430 pcs | Data sheet | 1.TL1105F160Q.pdf2.TL1105F160Q.pdf |
| Termination Style | PC Pin | Switch Travel | 0.25mm |
| Switch Function | Off-Mom | Series | TL1105 |
| Packaging | Bulk | Outline | 6.00mm x 6.00mm |
| Other Names | D310001 EG1827 TL1105F160 |
Operating Temperature | -20°C ~ 70°C |
| Operating Force | 160gf | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 100,000 Cycles |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | - | Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole |
| Contact Rating @ Voltage | 0.05A @ 12VDC | Circuit | SPST-NO |
| Actuator Type | Standard | Actuator Orientation | Top Actuated |
| Actuator Material | Polyamide (PA), Nylon | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 4.30mm |
