TL1105DF160R

E-Switch

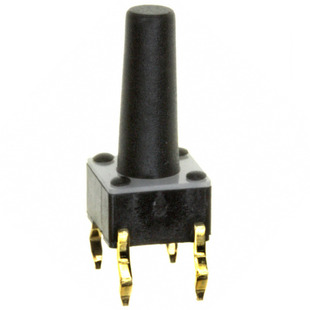

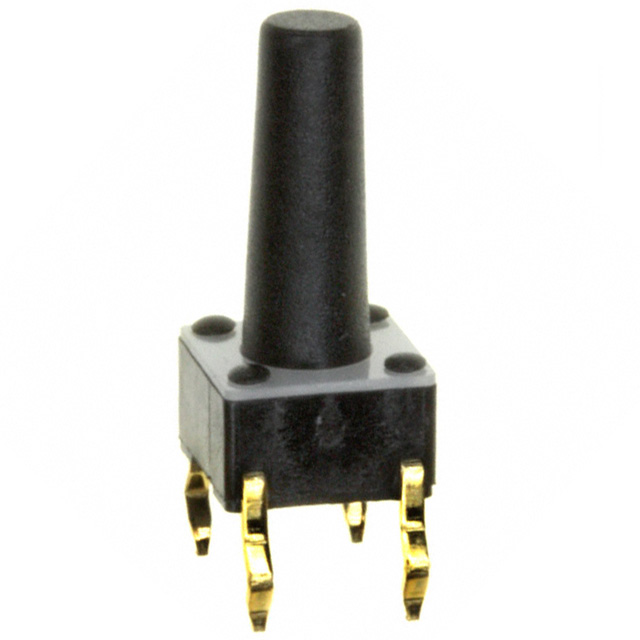

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TL1105DF160R
Manufacturer/Brand:	E-Switch
Product description	SWITCH TACTILE SPST-NO 0.05A 50V
Datasheets:	1.TL1105DF160R.pdf 2.TL1105DF160R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	73725 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 73725 pcs

Reference Price (In US Dollars)

1 pcs: $0.513

10 pcs: $0.494

25 pcs: $0.454

50 pcs: $0.395

100 pcs: $0.375

250 pcs: $0.366

500 pcs: $0.356

1000 pcs: $0.277

5000 pcs: $0.257

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.513

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TL1105DF160R

Part Number	TL1105DF160R	Manufacturer	E-Switch
Description	SWITCH TACTILE SPST-NO 0.05A 50V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	73725 pcs	Data sheet	1.TL1105DF160R.pdf 2.TL1105DF160R.pdf
Termination Style	PC Pin	Switch Travel	0.25mm
Switch Function	Off-Mom	Series	TL1105
Packaging	Bulk	Outline	6.00mm x 6.00mm
Other Names	EG4565	Operating Temperature	-20°C ~ 70°C
Operating Force	160gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	-	Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole
Contact Rating @ Voltage	0.05A @ 50VDC	Circuit	SPST-NO
Actuator Type	Standard	Actuator Orientation	Top Actuated
Actuator Material	Polyamide (PA), Nylon	Actuator Length, Right Angle	-
Actuator Height off PCB, Vertical	13.00mm
