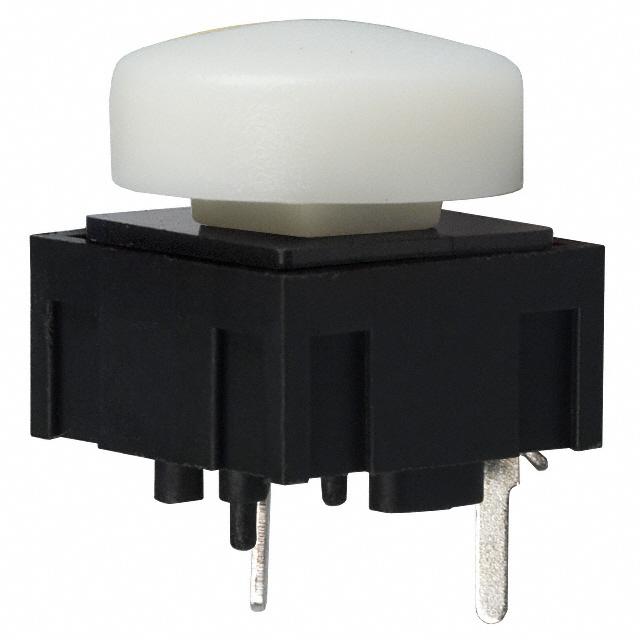

E-Switch
| Part Number | 320.02E11.08WHT | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACT SPST-NO 0.025A 50V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42062 pcs | Data sheet | 1.320.02E11.08WHT.pdf2.320.02E11.08WHT.pdf |
| Termination Style | PC Pin | Switch Travel | 0.60mm |
| Switch Function | Off-Mom | Series | 320 |
| Packaging | Bulk | Outline | 12.40mm x 12.40mm |
| Other Names | 320.02E1-1.08-8 320.02E1-1.08-WHITE 320.02E1-1.08WHT EG1318 XB0509P |
Operating Temperature | -20°C ~ 70°C |
| Operating Force | 135gf | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000,000 Cycles |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | White Cap |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.025A @ 50VDC |
| Circuit | SPST-NO | Actuator Type | Round Button |
| Actuator Orientation | Top Actuated | Actuator Material | Polycarbonate (PC) |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 14.40mm |
