E-Switch

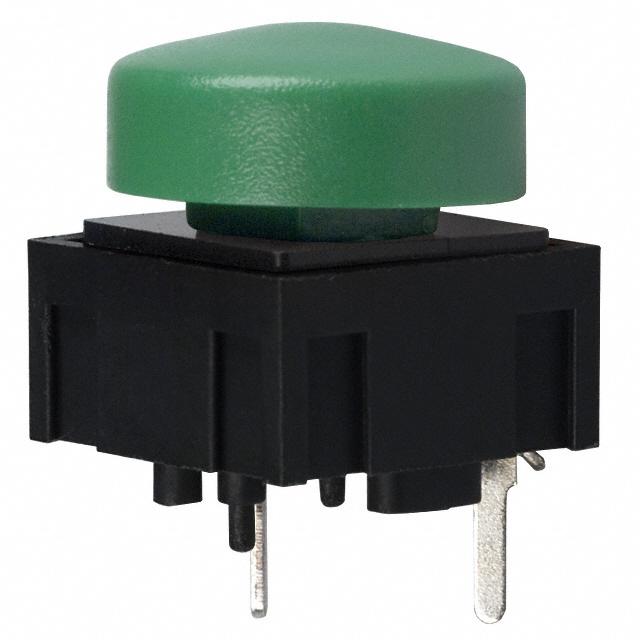

| Part Number | 320.02E11.08GRN | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACT SPST-NO 0.025A 50V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32369 pcs | Data sheet | 1.320.02E11.08GRN.pdf2.320.02E11.08GRN.pdf |
| Termination Style | PC Pin | Switch Travel | 0.60mm |
| Switch Function | Off-Mom | Series | 320 |
| Packaging | Bulk | Outline | 12.40mm x 12.40mm |
| Other Names | 320.02E1-1.08GRN EG2554 XB0879A |
Operating Temperature | -20°C ~ 70°C |
| Operating Force | 135gf | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000,000 Cycles |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Green Cap | Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole |
| Contact Rating @ Voltage | 0.025A @ 50VDC | Circuit | SPST-NO |
| Actuator Type | Round Button | Actuator Orientation | Top Actuated |
| Actuator Material | Polycarbonate (PC) | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 14.40mm |
