CS-4-22YTA

Copal Electronics

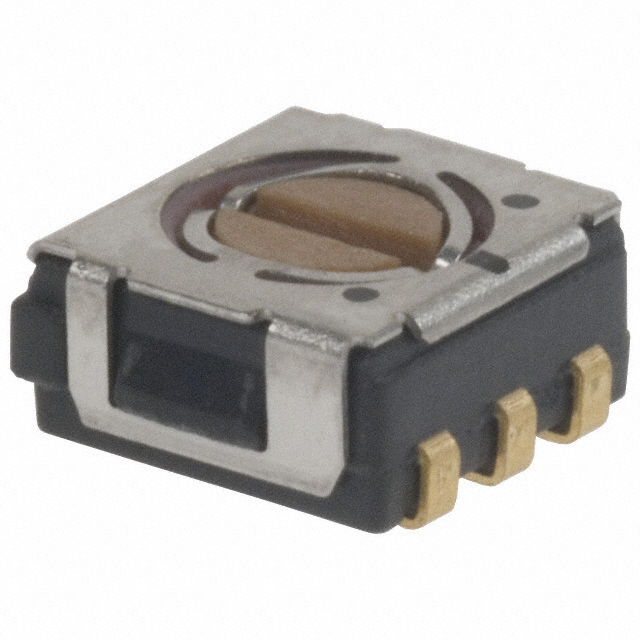

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CS-4-22YTA
Manufacturer/Brand:	Copal Electronics
Product description	SWITCH ROTARY DIP DPDT 100MA 16V
Datasheets:	CS-4-22YTA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	29522 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 29522 pcs

Reference Price (In US Dollars)

1 pcs: $1.17

10 pcs: $1.122

25 pcs: $1.073

50 pcs: $1.024

100 pcs: $0.902

250 pcs: $0.853

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.17

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CS-4-22YTA

Part Number	CS-4-22YTA	Manufacturer	Copal Electronics
Description	SWITCH ROTARY DIP DPDT 100MA 16V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29522 pcs	Data sheet	CS-4-22YTA.pdf
Washable	Yes	Voltage Rating	16VDC
Termination Style	J Lead	Series	CS-4
Pitch	0.051" (1.30mm)	Packaging	Cut Tape (CT)
Other Names	563-1039-1	Operating Temperature	-25°C ~ 70°C
Number of Positions	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	11 Weeks	Length	0.197" (5.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.091" (2.30mm)
Features	-	Electrical Life	200 Cycles
Detailed Description	Dip Switch DPDT 2 Position Surface Mount Rotary for Tool Actuator 100mA 16VDC	Current Rating	100mA
Contact Material	Copper Alloy	Contact Finish	Gold
Circuit	DPDT	Body Material	Epoxy
Actuator Type	Rotary for Tool	Actuator Level	Flush, Recessed
