CS-4-14NTA

Copal ElectronicsCopal Electronics

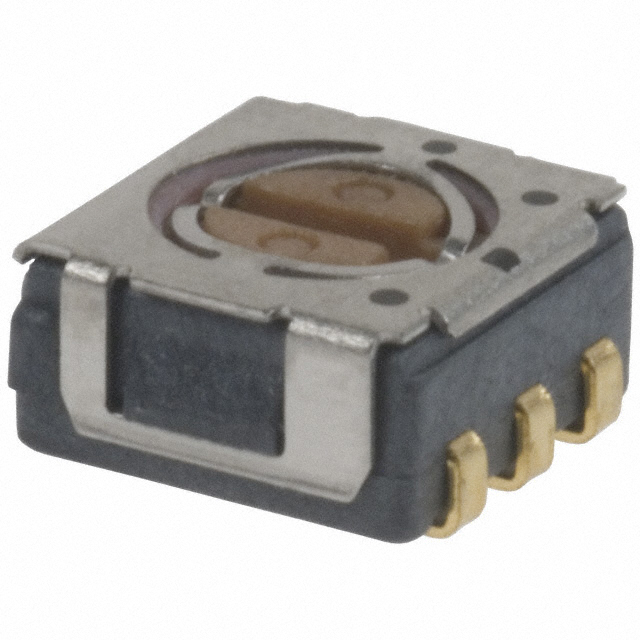

CS-4-14NTA Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: CS-4-14NTA
Manufacturer/Brand: Copal Electronics
Product description SWITCH ROTARY DIP SP4T 100MA 16V
Datasheets: CS-4-14NTA.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 70091 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 70091 pcs
Reference Price (In US Dollars)
500 pcs
$0.548
1000 pcs
$0.47
5000 pcs
$0.431
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.548

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of CS-4-14NTA

Part Number CS-4-14NTA Manufacturer Copal Electronics
Description SWITCH ROTARY DIP SP4T 100MA 16V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 70091 pcs Data sheet CS-4-14NTA.pdf
Washable Yes Voltage Rating 16VDC
Termination Style J Lead Series CS-4
Pitch 0.051" (1.30mm) Packaging Tape & Reel (TR)
Other Names 563-1037-2
CS414NTA		 Operating Temperature -25°C ~ 70°C
Number of Positions 4 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life -
Manufacturer Standard Lead Time 11 Weeks Length 0.197" (5.00mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height Above Board 0.091" (2.30mm)
Features - Electrical Life 200 Cycles
Detailed Description Dip Switch SP4T 4 Position Surface Mount Rotary for Tool Actuator 100mA 16VDC Current Rating 100mA
Contact Material Copper Alloy Contact Finish Gold
Circuit SP4T Body Material Liquid Crystal Polymer (LCP)
Actuator Type Rotary for Tool Actuator Level Flush, Recessed
