Conxall / Switchcraft
| Part Number | AAA3MWZ | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|

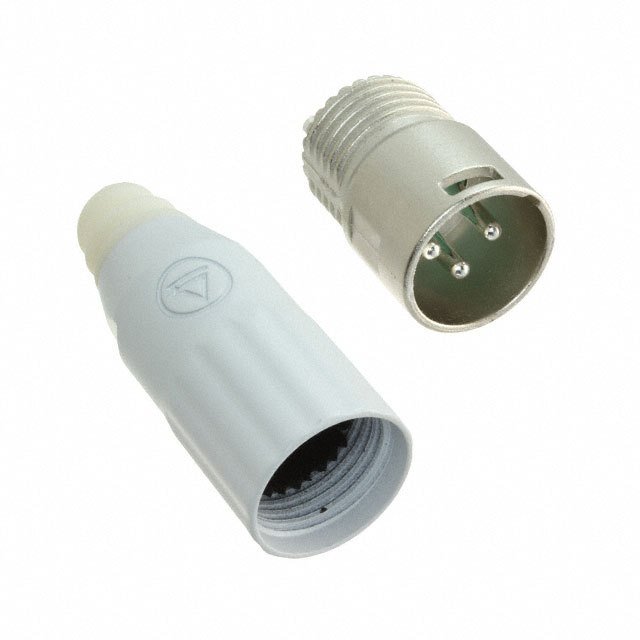

| Description | CONN RCPT MALE XLR 3POS SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21330 pcs | Data sheet | 1.AAA3MWZ.pdf2.AAA3MWZ.pdf |
| Voltage Rating | 125VAC | Termination | Solder Cup |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | XLR | Shell Material | Zinc Alloy |
| Shell Finish | Nickel | Series | Q-G® AAA |
| Packaging | Bulk | Other Names | SC2147 |
| Orientation | Keyed | Operating Temperature | - |
| Number of Positions | 3 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Thermoplastic |
| Ingress Protection | - | Features | Backshell, Cable Clamp, Ground, Strain Relief |
| Fastening Type | Latch Lock | Detailed Description | 3 Position Circular Connector Receptacle, Male Pins Solder Cup Silver |
| Current Rating | 15A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Silver |
| Connector Type | Receptacle, Male Pins | Color | White |
| Cable Opening | 0.100" ~ 0.220" (2.54mm ~ 5.59mm) | Backshell Material, Plating | Zinc Alloy, Nickel |
| Applications | Audio, Industrial, Instrumentation, Medical |
