Conxall / Switchcraft
| Part Number | AAA3MPZ | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|

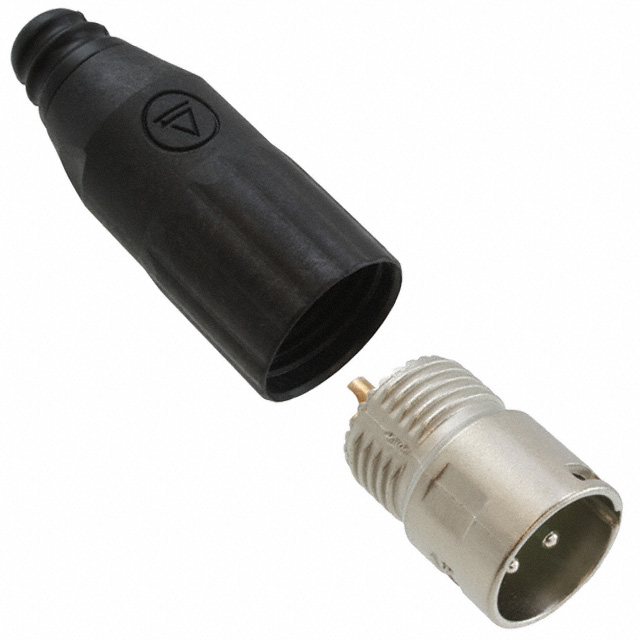

| Description | CONN RCPT MALE XLR 3POS SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30340 pcs | Data sheet | AAA3MPZ.pdf |
| Voltage Rating | 125VAC | Termination | Solder Cup |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | XLR | Shell Material | Zinc Alloy |
| Shell Finish | Nickel | Series | Q-G® AAA |
| Packaging | Bulk | Other Names | AAA3MPZ-ND SC1533 |
| Orientation | Keyed | Operating Temperature | - |
| Number of Positions | 3 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Thermoplastic | Ingress Protection | - |
| Features | Backshell, Cable Clamp, Ground, Strain Relief | Fastening Type | Latch Lock |
| Detailed Description | 3 Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Current Rating | 15A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Male Pins |
| Color | Silver | Cable Opening | 0.100" ~ 0.220" (2.54mm ~ 5.59mm) |
| Backshell Material, Plating | Zinc Alloy, Nickel | Applications | Audio, Industrial, Instrumentation, Medical |
