KDH3CNA1BBB

Cherry Switches (ZF Electronics)

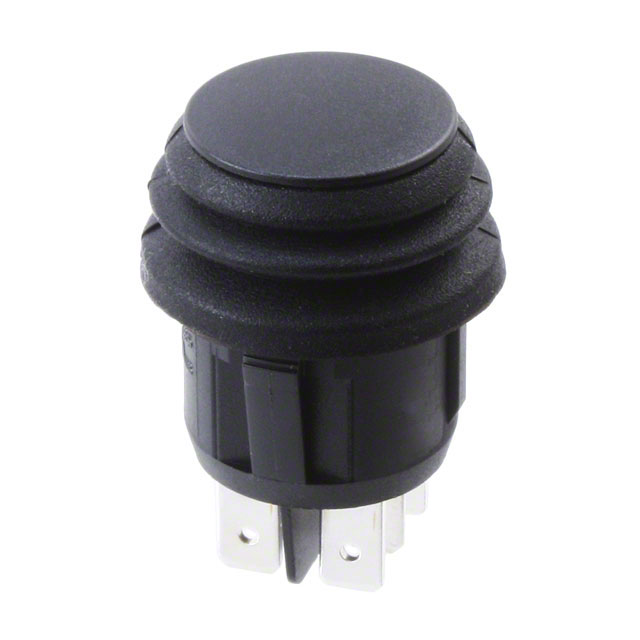

Image may be representation. See specifications for product details.

Product Overview

Part Number:	KDH3CNA1BBB
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SWITCH ROCKER DPDT 16A 125V
Datasheets:	KDH3CNA1BBB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	22330 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 22330 pcs

Reference Price (In US Dollars)

1 pcs: $1.68

10 pcs: $1.64

25 pcs: $1.561

50 pcs: $1.483

100 pcs: $1.405

250 pcs: $1.366

500 pcs: $1.327

1000 pcs: $1.171

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.68

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of KDH3CNA1BBB

Part Number	KDH3CNA1BBB	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH ROCKER DPDT 16A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22330 pcs	Data sheet	KDH3CNA1BBB.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-Off-On
Series	KD	Panel Cutout Dimensions	Circular - 20.00mm Dia
Packaging	Bulk	Other Names	CH941
Operating Temperature	-25°C ~ 85°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP65 - Dust Tight, Water Resistant	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	6,000 Cycles	Detailed Description	Rocker Switch DPDT 16A (AC), 10A (DC) 125V Panel Mount, Snap-In
Current Rating	16A (AC), 10A (DC)	Color - Actuator/Cap	Black
Circuit	DPDT	Actuator Type	Round
Actuator Marking	No Marking
