KDH3BNA1BBB

Cherry Switches (ZF Electronics)

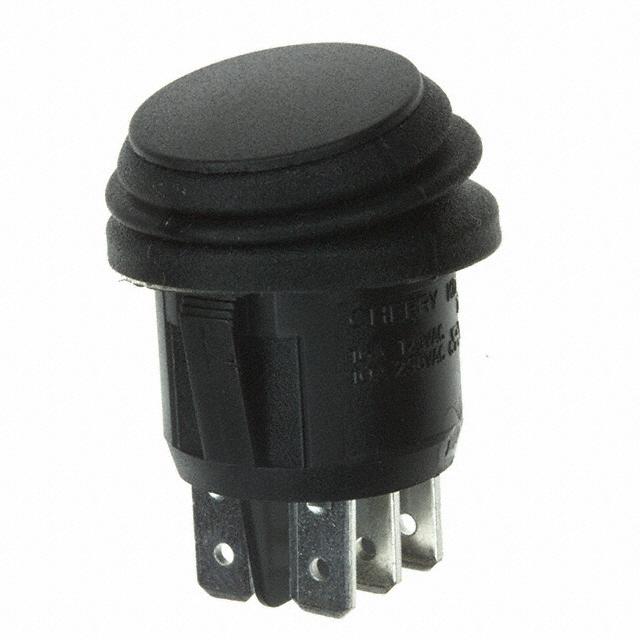

Image may be representation. See specifications for product details.

Product Overview

Part Number:	KDH3BNA1BBB
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SWITCH ROCKER DPDT 16A 125V
Datasheets:	KDH3BNA1BBB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17047 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 17047 pcs

Reference Price (In US Dollars)

1 pcs: $1.835

10 pcs: $1.749

25 pcs: $1.661

50 pcs: $1.574

100 pcs: $1.552

250 pcs: $1.508

500 pcs: $1.443

1000 pcs: $1.268

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.835

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of KDH3BNA1BBB

Part Number	KDH3BNA1BBB	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH ROCKER DPDT 16A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17047 pcs	Data sheet	KDH3BNA1BBB.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-On
Series	KD	Panel Cutout Dimensions	Circular - 20.00mm Dia
Packaging	Bulk	Other Names	CH940
Operating Temperature	-25°C ~ 85°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP65 - Dust Tight, Water Resistant	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	6,000 Cycles	Detailed Description	Rocker Switch DPDT 16A (AC), 10A (DC) 125V Panel Mount, Snap-In
Current Rating	16A (AC), 10A (DC)	Color - Actuator/Cap	Black
Circuit	DPDT	Actuator Type	Round
Actuator Marking	No Marking
