Bel

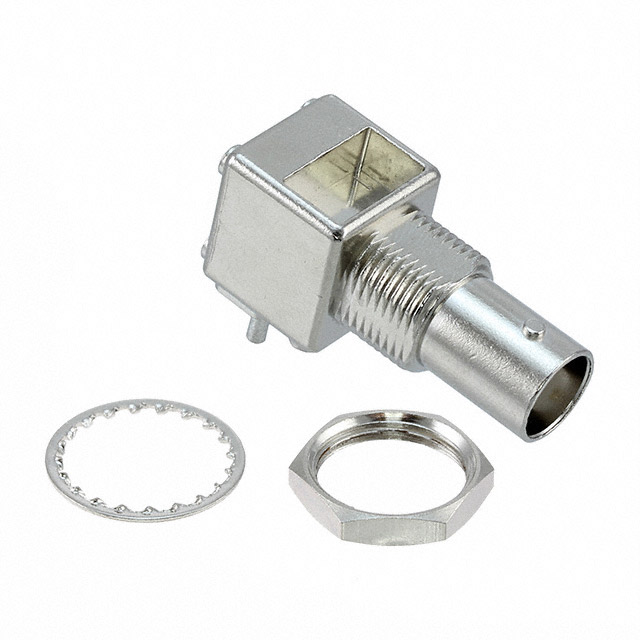

| Part Number | VBM201 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN BNC JACK R/A 50 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13774 pcs | Data sheet | VBM201.pdf |
| Voltage Rating | 500V | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | 1427-1044 | Operating Temperature | -40°C ~ 85°C |
| Number of Ports | 1 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.2dB |
| Ingress Protection | - | Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohm | Housing Color | Silver |
| Frequency - Max | 4GHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polypropylene (PP) |
| Detailed Description | BNC Connector Jack, Female Socket 50 Ohm Panel Mount, Through Hole, Right Angle Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | BNC |
| Center Contact Plating | Gold | Center Contact Material | Phosphor Bronze |
| Cable Group | - | Body Material | Zinc Alloy |
| Body Finish | Nickel |
