Bel

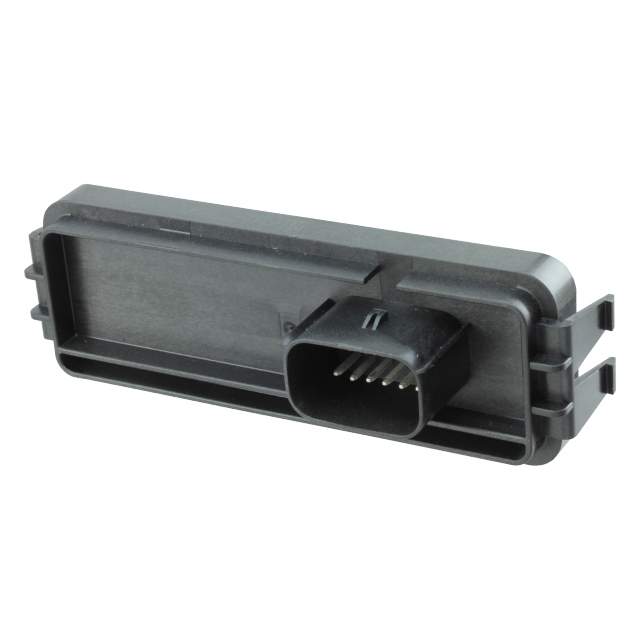

| Part Number | 5810112011 | Manufacturer | Bel |
|---|---|---|---|
| Description | MODICE ME-MX 12 POSITION | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7243 pcs | Data sheet | 1.5810112011.pdf2.5810112011.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | ModICE® MX | Row Spacing - Mating | - |
| Pitch - Mating | 0.138" (3.50mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 116-1101 C581-01-12-011 C581-01-12-011-ND |
| Operating Temperature | -40°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polymer, Glass Filled | Insulation Height | 1.610" (40.90mm) |
| Insulation Color | Black | Ingress Protection | IP67, IP69K |
| Features | - | Fastening Type | Latch Lock |
| Detailed Description | Connector Header Panel Mount, Through Hole, Right Angle 12 position 0.138" (3.50mm) | Current Rating | 10A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.130" (3.30mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | Automotive |
