Avago Technologies (Broadcom Limited)

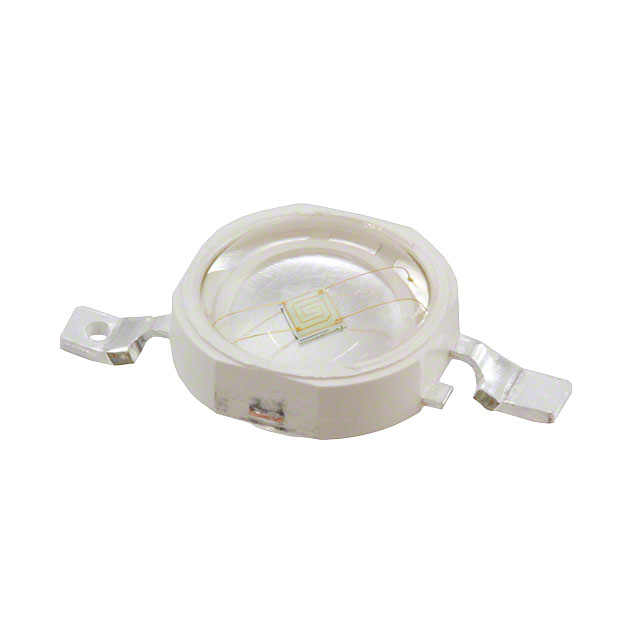

| Part Number | ASMT-AG00-NST00 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | PWR LED LIGHT SOURCE 1W GREEN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3837 pcs | Data sheet | ASMT-AG00-NST00.pdf |
| Wavelength | 525nm (515nm ~ 535nm) | Voltage - Forward (Vf) (Typ) | 3.2V |
| Viewing Angle | 140° | Thermal Resistance of Package | 10°C/W |
| Temperature - Test | 25°C | Supplier Device Package | 2-SMD |
| Size / Dimension | 0.315" Dia (8.00mm) | Series | - |
| Packaging | Tube | Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Other Names | 516-2562 ASMT-AG00-NST00-ND ASMTAG00NST00 |
Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | Lumens/Watt @ Current - Test | 63 lm/W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.165" (4.20mm) |
| Flux @ Current/Temperature - Test | 70 lm (52 lm ~ 87 lm) | Detailed Description | LED Lighting Color - Green 525nm (515nm ~ 535nm) 2-SMD, Gull Wing Exposed Pad |
| Current - Test | 350mA | Current - Max | 500mA |
| Color | Green | Base Part Number | ASMT-AG00 |
