Avago Technologies (Broadcom Limited)

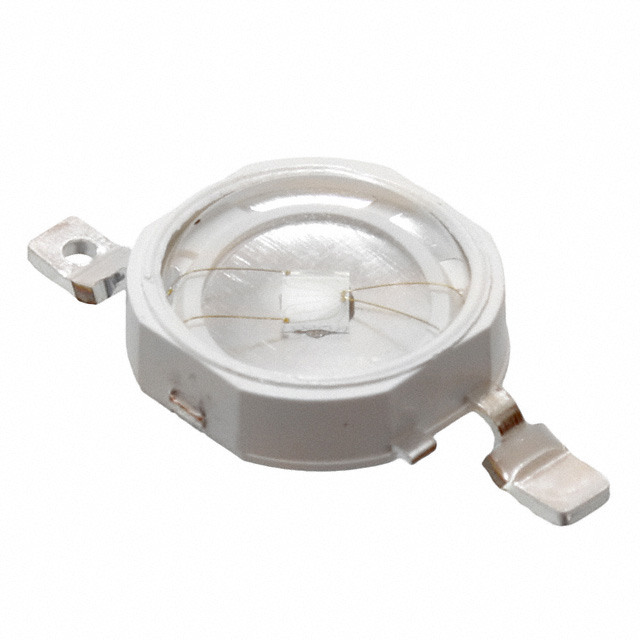

| Part Number | ASMT-AB31-NMP00 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | LED LIGHT SOURCE AV 3W BLUE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44743 pcs | Data sheet | ASMT-AB31-NMP00.pdf |
| Wavelength | 465nm (455nm ~ 475nm) | Voltage - Forward (Vf) (Typ) | 3.2V |
| Viewing Angle | 140° | Thermal Resistance of Package | 10°C/W |
| Temperature - Test | 25°C | Supplier Device Package | 2-SMD |
| Size / Dimension | 0.315" Dia (8.00mm) | Series | - |
| Packaging | Tube | Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Other Names | 516-2668-5 ASMT-AB31-NMP00-ND ASMTAB31NMP00 |
Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) | Manufacturer Standard Lead Time | 12 Weeks |
| Lumens/Watt @ Current - Test | 20 lm/W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.165" (4.20mm) | Flux @ Current/Temperature - Test | 22 lm (14 lm ~ 31 lm) |
| Detailed Description | LED Lighting Color - Blue 465nm (455nm ~ 475nm) 2-SMD, Gull Wing Exposed Pad | Current - Test | 350mA |
| Current - Max | 700mA | Color | Blue |
| Base Part Number | ASMT-AB31 |
