ACNT-H50L-000E

Avago Technologies (Broadcom Limited)

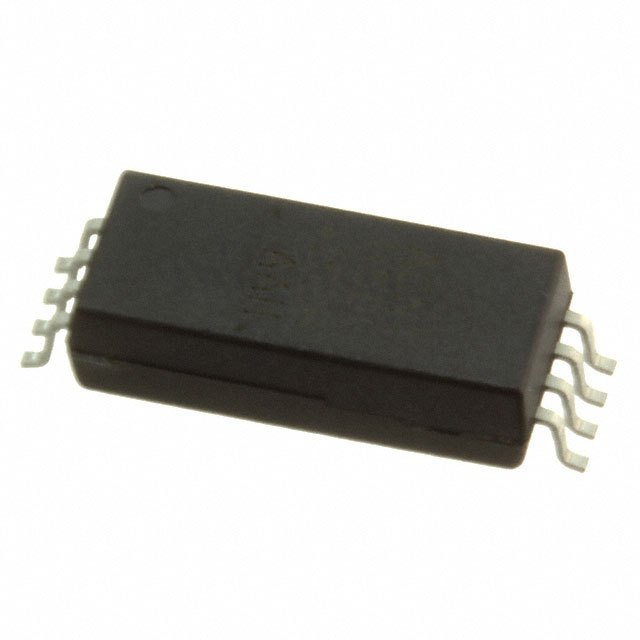

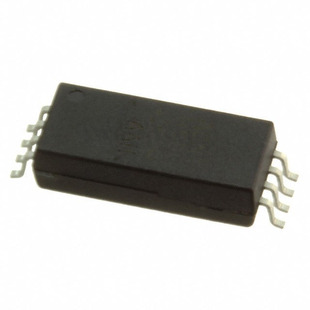

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ACNT-H50L-000E
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	OPTOISO 7.5KV TRANSISTOR 8SO
Datasheets:	ACNT-H50L-000E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	21589 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 21589 pcs

Reference Price (In US Dollars)

1 pcs: $1.644

10 pcs: $1.368

25 pcs: $1.149

100 pcs: $0.985

250 pcs: $0.876

500 pcs: $0.794

1000 pcs: $0.728

2500 pcs: $0.698

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.644

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ACNT-H50L-000E

Part Number	ACNT-H50L-000E	Manufacturer	Avago Technologies (Broadcom Limited)
Description	OPTOISO 7.5KV TRANSISTOR 8SO	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21589 pcs	Data sheet	ACNT-H50L-000E.pdf
Voltage - Output (Max)	24V	Voltage - Isolation	7500Vrms
Voltage - Forward (Vf) (Typ)	1.45V	Vce Saturation (Max)	-
Turn On / Turn Off Time (Typ)	800ns, 1µs	Supplier Device Package	8-SO Stretched
Series	-	Rise / Fall Time (Typ)	-
Packaging	Tube	Package / Case	8-SOIC (0.535", 13.60mm Width)
Output Type	Transistor	Other Names	516-3297
Operating Temperature	-40°C ~ 105°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	22 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor Output 7500Vrms 1 Channel 8-SO Stretched
Current Transfer Ratio (Min)	31% @ 12mA	Current Transfer Ratio (Max)	80% @ 12mA
Current - Output / Channel	8mA	Current - DC Forward (If) (Max)	20mA
