FW1120G01

Agastat Relays / TE Connectivity

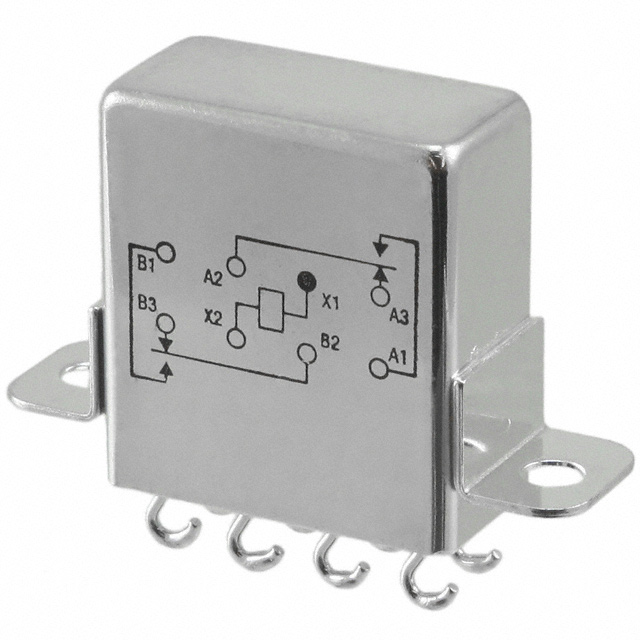

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FW1120G01
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY GEN PURPOSE DPDT 2A 28V
Datasheets:	FW1120G01.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	594 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 594 pcs

Reference Price (In US Dollars)

10 pcs: $56.348

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$56.348

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FW1120G01

Part Number	FW1120G01	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY GEN PURPOSE DPDT 2A 28V	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	594 pcs	Data sheet	FW1120G01.pdf
Turn On Voltage (Max)	13 VDC	Turn Off Voltage (Min)	2.3 VDC
Termination Style	Solder Hook	Switching Voltage	28VDC - Nom
Series	Military, MIL-R-5757/10, FW, CII	Release Time	6ms
Relay Type	General Purpose	Packaging	Bulk
Other Names	1122-1030 1122-1030-MIL 3-1617019-7 A101582 A101582-ND M5757/10-039	Operating Temperature	-65°C ~ 125°C
Operate Time	6ms	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	21 Weeks
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Features	-
Detailed Description	General Purpose Relay DPDT (2 Form C) Chassis Mount	Contact Rating (Current)	2A
Contact Material	-	Contact Form	DPDT (2 Form C)
Coil Voltage	26.5VDC	Coil Type	Non Latching
Coil Power	-
