FW1109G06

Agastat Relays / TE Connectivity

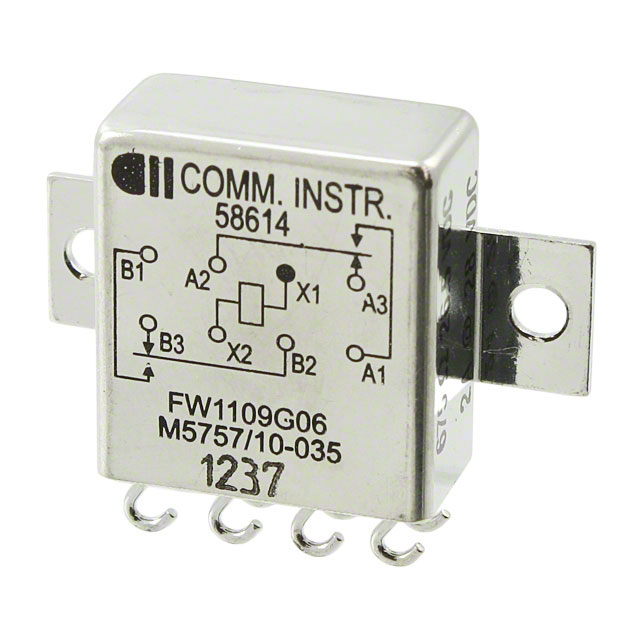

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FW1109G06
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY GEN PURPOSE DPDT 2A 28V
Datasheets:	FW1109G06.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	547 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 547 pcs

Reference Price (In US Dollars)

1 pcs: $60.103

10 pcs: $56.348

25 pcs: $52.591

50 pcs: $50.713

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$60.103

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FW1109G06

Part Number	FW1109G06	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY GEN PURPOSE DPDT 2A 28V	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	547 pcs	Data sheet	FW1109G06.pdf
Turn On Voltage (Max)	13.5 VDC	Turn Off Voltage (Min)	-
Termination Style	Solder Hook	Switching Voltage	28VDC - Nom
Series	Military, MIL-R-5757/10, FW, CII	Release Time	5ms
Relay Type	General Purpose	Packaging	Bulk
Other Names	1122-1125 1122-1125-MIL 1122-1125-ND 2-1617019-3 A101687 A101687-ND A132187 FW1109G06-ND M5757/10-035	Operating Temperature	-65°C ~ 125°C
Operate Time	5ms	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	21 Weeks
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Features	-
Detailed Description	General Purpose Relay DPDT (2 Form C) Chassis Mount	Contact Rating (Current)	2A
Contact Material	-	Contact Form	DPDT (2 Form C)
Coil Voltage	26.5VDC	Coil Type	Non Latching
Coil Resistance	675 Ohms	Coil Power	-
