EDS04SNRSTU04Q

Agastat Relays / TE ConnectivityAgastat Relays / TE Connectivity

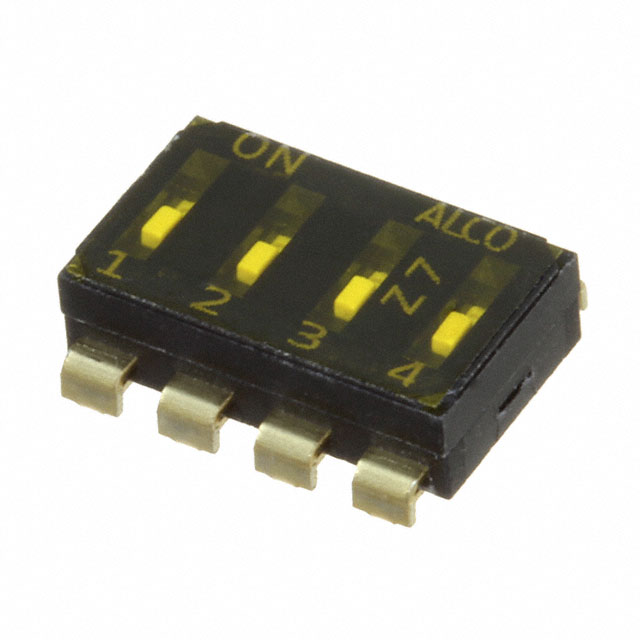

EDS04SNRSTU04Q Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: EDS04SNRSTU04Q
Manufacturer/Brand: Agastat Relays / TE Connectivity
Product description END STACK DIP 4P J RECESS SEAL T
Datasheets: EDS04SNRSTU04Q.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 48788 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 48788 pcs
Reference Price (In US Dollars)
1 pcs
$0.654
10 pcs
$0.618
47 pcs
$0.592
94 pcs
$0.555
141 pcs
$0.542
282 pcs
$0.479
517 pcs
$0.454
1034 pcs
$0.403
5029 pcs
$0.353
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$0.654

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of EDS04SNRSTU04Q

Part Number EDS04SNRSTU04Q Manufacturer Agastat Relays / TE Connectivity
Description END STACK DIP 4P J RECESS SEAL T Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 48788 pcs Data sheet EDS04SNRSTU04Q.pdf
Washable Yes Voltage Rating 24VDC
Termination Style J Lead Series EDS
Pitch 0.100" (2.54mm), Full Packaging Tube
Other Names 3-2319848-5
450-2644		 Operating Temperature -20°C ~ 85°C
Number of Positions 4 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life 2,000 Cycles
Manufacturer Standard Lead Time 9 Weeks Length 0.396" (10.06mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height Above Board 0.136" (3.45mm)
Features - Electrical Life 2,000 Cycles
Detailed Description Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC Current Rating 25mA
Contact Material Copper Alloy Contact Finish Gold
Circuit SPST Body Material Polyamide (PA), Nylon
Actuator Type Slide (Standard) Actuator Level Flush, Recessed
