EDS04SNNNTU04Q

Agastat Relays / TE Connectivity

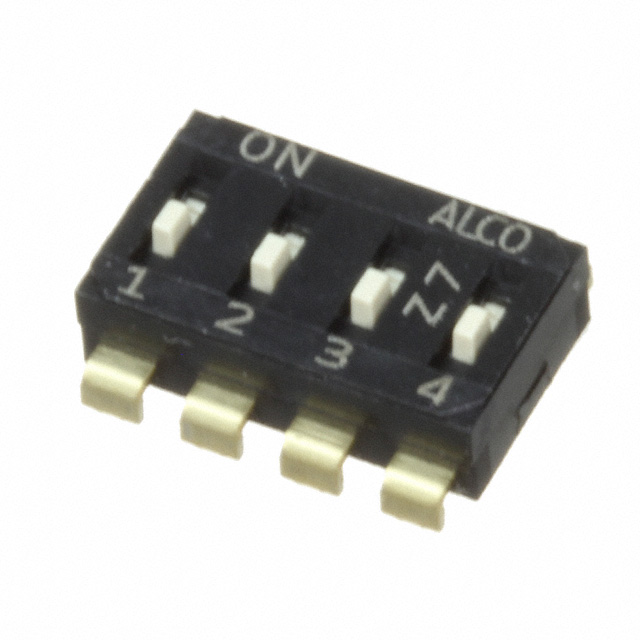

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EDS04SNNNTU04Q
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	END STACK DIP 4P J RAISED TUBE
Datasheets:	EDS04SNNNTU04Q.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	56296 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 56296 pcs

Reference Price (In US Dollars)

1 pcs: $0.578

10 pcs: $0.546

47 pcs: $0.524

94 pcs: $0.49

141 pcs: $0.479

282 pcs: $0.423

517 pcs: $0.401

1034 pcs: $0.357

5029 pcs: $0.312

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.578

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EDS04SNNNTU04Q

Part Number	EDS04SNNNTU04Q	Manufacturer	Agastat Relays / TE Connectivity
Description	END STACK DIP 4P J RAISED TUBE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	56296 pcs	Data sheet	EDS04SNNNTU04Q.pdf
Washable	No	Voltage Rating	24VDC
Termination Style	J Lead	Series	EDS
Pitch	0.100" (2.54mm), Full	Packaging	Tube
Other Names	1-2319847-4 450-2629	Operating Temperature	-20°C ~ 85°C
Number of Positions	4	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	2,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Length	0.396" (10.06mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.152" (3.85mm)
Features	-	Electrical Life	2,000 Cycles
Detailed Description	Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC	Current Rating	25mA
Contact Material	Copper Alloy	Contact Finish	Gold
Circuit	SPST	Body Material	Polyamide (PA), Nylon
Actuator Type	Slide (Standard)	Actuator Level	Raised
