6-520314-6

Agastat Relays / TE Connectivity

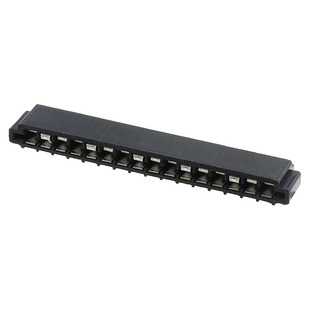

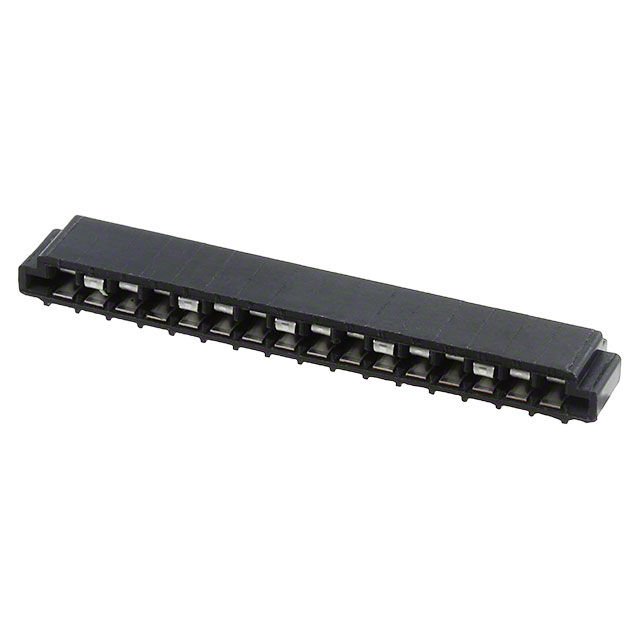

Image may be representation. See specifications for product details.

Product Overview

Part Number:	6-520314-6
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN FFC TOP 16POS 2.54MM R/A
Datasheets:	6-520314-6.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	48518 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 48518 pcs

Reference Price (In US Dollars)

1 pcs: $0.607

10 pcs: $0.551

25 pcs: $0.517

50 pcs: $0.495

100 pcs: $0.472

480 pcs: $0.427

960 pcs: $0.382

1440 pcs: $0.337

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.607

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 6-520314-6

Part Number	6-520314-6	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN FFC TOP 16POS 2.54MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	48518 pcs	Data sheet	6-520314-6.pdf
Voltage Rating	250V	Termination	Kinked Pin
Series	Triomate	Pitch	0.100" (2.54mm)
Packaging	Tray	Operating Temperature	-55°C ~ 105°C
Number of Positions	16	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Cycles	25
Material Flammability Rating	UL94 V-0	Manufacturer Standard Lead Time	31 Weeks
Locking Feature	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polyester Thermoplastic, Glass Filled	Housing Color	Black
Height Above Board	0.190" (4.83mm)	Flat Flex Type	FFC, FPC
Features	-	FFC, FCB Thickness	0.13mm ~ 0.38mm
Detailed Description	16 Position FFC, FPC Connector Contacts, Top 0.100" (2.54mm) Through Hole, Right Angle	Current Rating	1A
Contact Material	Phosphor Bronze	Contact Finish Thickness	-
Contact Finish	Tin	Connector/Contact Type	Contacts, Top
Cable End Type	Straight	Actuator Material	-
Actuator Color	-
