6-520314-1

Agastat Relays / TE Connectivity

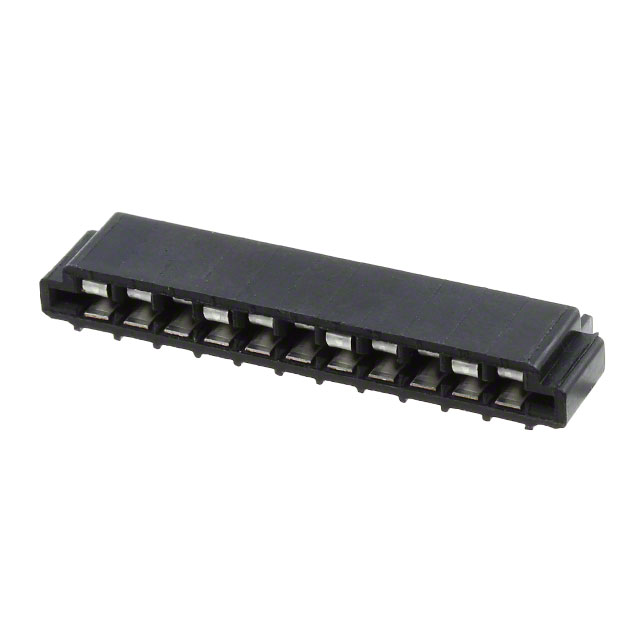

Image may be representation. See specifications for product details.

Product Overview

Part Number:	6-520314-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN FFC TOP 11POS 2.54MM R/A
Datasheets:	6-520314-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	99138 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 99138 pcs

Reference Price (In US Dollars)

1 pcs: $0.39

10 pcs: $0.344

25 pcs: $0.324

50 pcs: $0.31

100 pcs: $0.297

250 pcs: $0.27

500 pcs: $0.243

1000 pcs: $0.216

2500 pcs: $0.196

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.39

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 6-520314-1

Part Number	6-520314-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN FFC TOP 11POS 2.54MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	99138 pcs	Data sheet	6-520314-1.pdf
Voltage Rating	250V	Termination	Kinked Pin
Series	Triomate	Pitch	0.100" (2.54mm)
Packaging	Bulk	Other Names	6-520314-1-ND A114312
Operating Temperature	-55°C ~ 105°C	Number of Positions	11
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	25	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	18 Weeks	Locking Feature	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyester Thermoplastic, Glass Filled
Housing Color	Black	Height Above Board	0.190" (4.83mm)
Flat Flex Type	FFC, FPC	Features	-
FFC, FCB Thickness	0.13mm ~ 0.38mm	Detailed Description	11 Position FFC, FPC Connector Contacts, Top 0.100" (2.54mm) Through Hole, Right Angle
Current Rating	1A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Tin
Connector/Contact Type	Contacts, Top	Cable End Type	Straight
Actuator Material	-	Actuator Color	-
