5749069-1

Agastat Relays / TE Connectivity

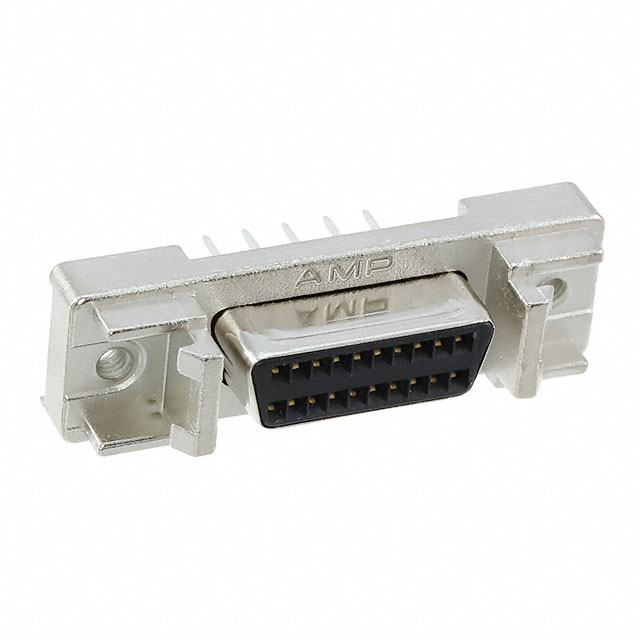

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5749069-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN D-TYPE RCPT 20POS VERT SLDR
Datasheets:	5749069-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12686 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12686 pcs

Reference Price (In US Dollars)

1 pcs: $2.59

16 pcs: $2.481

32 pcs: $2.265

64 pcs: $2.158

112 pcs: $2.05

256 pcs: $1.834

512 pcs: $1.726

1008 pcs: $1.51

2512 pcs: $1.435

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.59

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5749069-1

Part Number	5749069-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN D-TYPE RCPT 20POS VERT SLDR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12686 pcs	Data sheet	5749069-1.pdf
Wire Gauge	-	Voltage Rating	30V
Termination	Solder	Shell Size, Connector Layout	0.050 Pitch x 0.100 Row to Row
Shell Material, Finish	Steel, Nickel Plated	Series	AMPLIMITE .050 III
Packaging	Tube	Other Names	5749069-1-ND A123244
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions	20	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	35 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Housing Material	Thermoplastic
Flange Feature	Housing/Shell (2-56); Latchblocks, Rails	Features	Shielded
Detailed Description	20 Position D-Type Receptacle, Female Sockets Connector	Current Rating	1A
Contact Type	Signal	Contact Material	Phosphor Bronze
Contact Form	-	Contact Finish Thickness	-
Contact Finish	Gold	Connector Type	Receptacle, Female Sockets
Connector Style	D-Type	Color	Black
Backset Spacing	-
