5749030-1

Agastat Relays / TE Connectivity

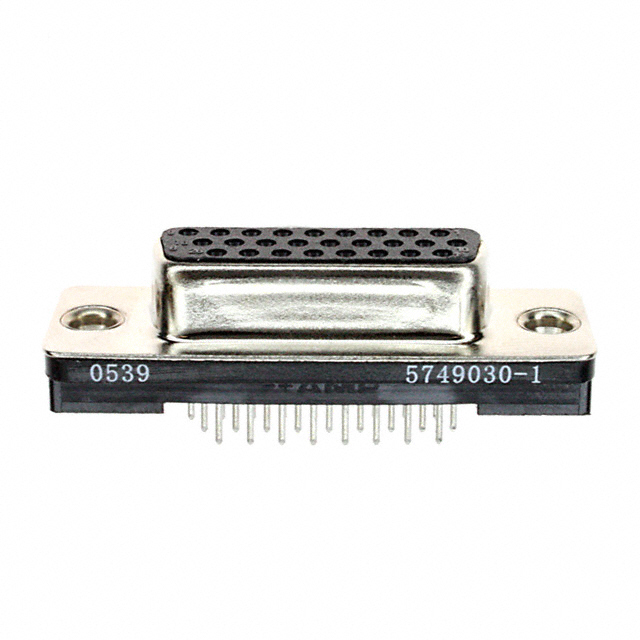

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5749030-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN D-SUB HD RCPT 26P VERT SLDR
Datasheets:	5749030-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17834 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 17834 pcs

Reference Price (In US Dollars)

4800 pcs: $2.163

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.163

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5749030-1

Part Number	5749030-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN D-SUB HD RCPT 26P VERT SLDR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17834 pcs	Data sheet	5749030-1.pdf
Wire Gauge	-	Voltage Rating	125V
Termination	Solder	Shell Size, Connector Layout	2 (DA, A) High Density
Shell Material, Finish	Steel, Nickel Plated	Series	AMPLIMITE HD-22
Packaging	Tray	Other Names	57490301 A31964
Operating Temperature	-55°C ~ 105°C	Number of Rows	3
Number of Positions	26	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (4-40)	Features	-
Detailed Description	26 Position D-Sub, High Density Receptacle, Female Sockets Connector	Current Rating	1.5A
Contact Type	Signal	Contact Material	Phosphor Bronze
Contact Form	-	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Connector Type	Receptacle, Female Sockets
Connector Style	D-Sub, High Density	Color	Black
Backset Spacing	-
