5-104809-2

Agastat Relays / TE Connectivity

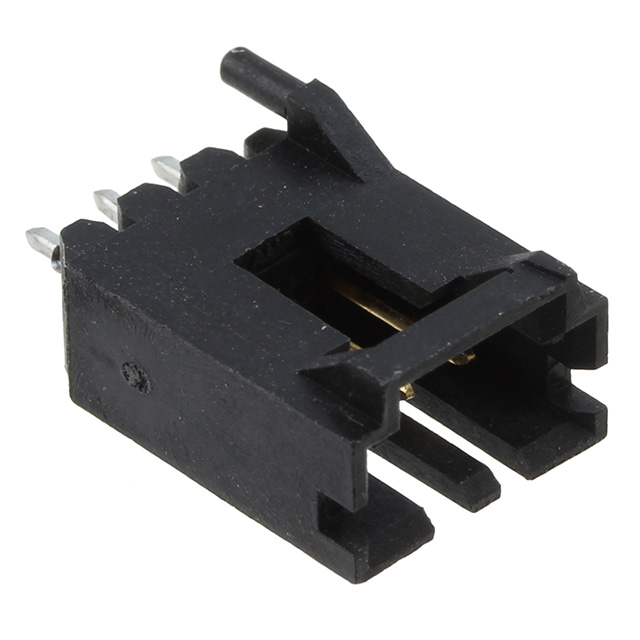

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5-104809-2
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 3POS VERT LATCH GOLD
Datasheets:	5-104809-2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	47534 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 47534 pcs

Reference Price (In US Dollars)

1 pcs: $0.636

10 pcs: $0.577

100 pcs: $0.495

500 pcs: $0.412

3744 pcs: $0.33

7488 pcs: $0.313

11232 pcs: $0.306

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.636

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5-104809-2

Part Number	5-104809-2	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 3POS VERT LATCH GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	47534 pcs	Data sheet	5-104809-2.pdf
Voltage Rating	-	Termination	Press-Fit, Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	AMPMODU MTE	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	0.545" (13.84mm)	Operating Temperature	-65°C ~ 105°C
Number of Rows	1	Number of Positions Loaded	All
Number of Positions	3	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-	Manufacturer Standard Lead Time	4 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Thermoplastic
Insulation Height	0.535" (13.60mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Guide, Keying Slot
Fastening Type	Latch Holder	Detailed Description	Connector Header Through Hole 3 position 0.100" (2.54mm)
Current Rating	3A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.130" (3.30mm)	Contact Length - Mating	0.230" (5.84mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	Automotive, General Purpose, Medical, Telecommunications
