5-104746-2

Agastat Relays / TE Connectivity

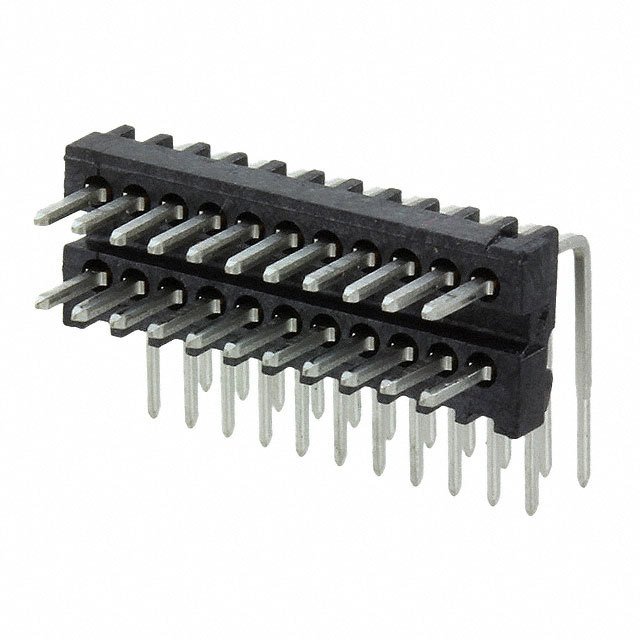

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5-104746-2
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 22POS DUAL R/A TIN
Datasheets:	5-104746-2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	28269 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 28269 pcs

Reference Price (In US Dollars)

1 pcs: $1.228

90 pcs: $1.032

180 pcs: $0.983

540 pcs: $0.835

1080 pcs: $0.712

5040 pcs: $0.639

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.228

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5-104746-2

Part Number	5-104746-2	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 22POS DUAL R/A TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28269 pcs	Data sheet	5-104746-2.pdf
Voltage Rating	30VAC	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	AMPMODU System 50	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Tube
Overall Contact Length	-	Other Names	5-104746-2-ND A115259
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	22
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic	Insulation Height	0.216" (5.49mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 22 position 0.050" (1.27mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Copper Alloy	Contact Length - Post	0.136" (3.46mm)
Contact Length - Mating	0.120" (3.05mm)	Contact Finish Thickness - Post	150.0µin (3.81µm)
Contact Finish Thickness - Mating	150.0µin (3.81µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Medical, Telecommunications
