3-1969584-8

Agastat Relays / TE Connectivity

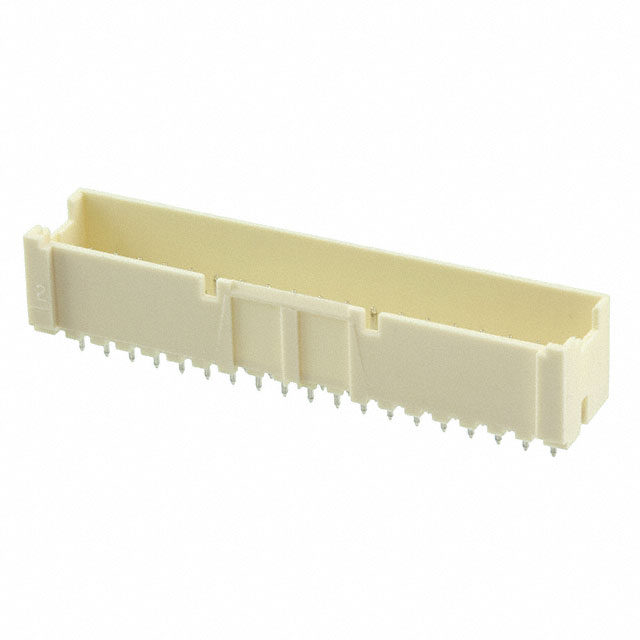

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3-1969584-8
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	HDR ASSY VERT DBL ROW
Datasheets:	1.3-1969584-8.pdf 2.3-1969584-8.pdf 3.3-1969584-8.pdf 4.3-1969584-8.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	76439 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 76439 pcs

Reference Price (In US Dollars)

1 pcs: $0.495

10 pcs: $0.449

100 pcs: $0.385

500 pcs: $0.32

1000 pcs: $0.275

5000 pcs: $0.244

10000 pcs: $0.238

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.495

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3-1969584-8

Part Number	3-1969584-8	Manufacturer	Agastat Relays / TE Connectivity
Description	HDR ASSY VERT DBL ROW	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	76439 pcs	Data sheet	1.3-1969584-8.pdf 2.3-1969584-8.pdf 3.3-1969584-8.pdf 4.3-1969584-8.pdf
Voltage Rating	250VAC	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Economy Power 2.5	Row Spacing - Mating	0.098" (2.50mm)
Pitch - Mating	0.098" (2.50mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A121927
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	38
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.386" (9.80mm)
Insulation Color	White	Ingress Protection	-
Features	Glow Wire Compliant	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 38 position 0.098" (2.50mm)	Current Rating	4.2A
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	0.134" (3.40mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Lighting
