3-1969584-4

Agastat Relays / TE Connectivity

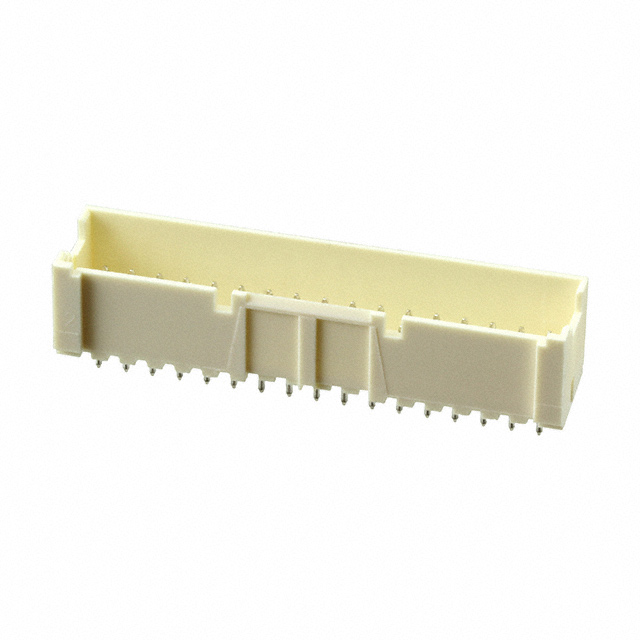

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3-1969584-4
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	SY HDR VERT GWT NO-BOSS DUAL ROW
Datasheets:	3-1969584-4.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	55155 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 55155 pcs

Reference Price (In US Dollars)

1 pcs: $0.578

10 pcs: $0.523

100 pcs: $0.448

500 pcs: $0.374

1000 pcs: $0.32

5000 pcs: $0.284

10000 pcs: $0.278

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.578

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3-1969584-4

Part Number	3-1969584-4	Manufacturer	Agastat Relays / TE Connectivity
Description	SY HDR VERT GWT NO-BOSS DUAL ROW	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	55155 pcs	Data sheet	3-1969584-4.pdf
Voltage Rating	250VAC	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Economy Power 2.5	Row Spacing - Mating	0.098" (2.50mm)
Pitch - Mating	0.098" (2.50mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A119129
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	34
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.386" (9.80mm)	Insulation Color	White
Ingress Protection	-	Features	Glow Wire Compliant
Fastening Type	Friction Lock	Detailed Description	Connector Header Through Hole 34 position 0.098" (2.50mm)
Current Rating	4.2A	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Brass
Contact Length - Post	0.134" (3.40mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose, Industrial, Lighting
