Agastat Relays / TE Connectivity
| Part Number | 280581-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT 15POS .100 T/H R/A GLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23374 pcs | Data sheet | 280581-2.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | AMPMODU Mod II |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 280581-2-ND A121795 |
| Operating Temperature | -65°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 15 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 30 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.157" (4.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Friction Lock |

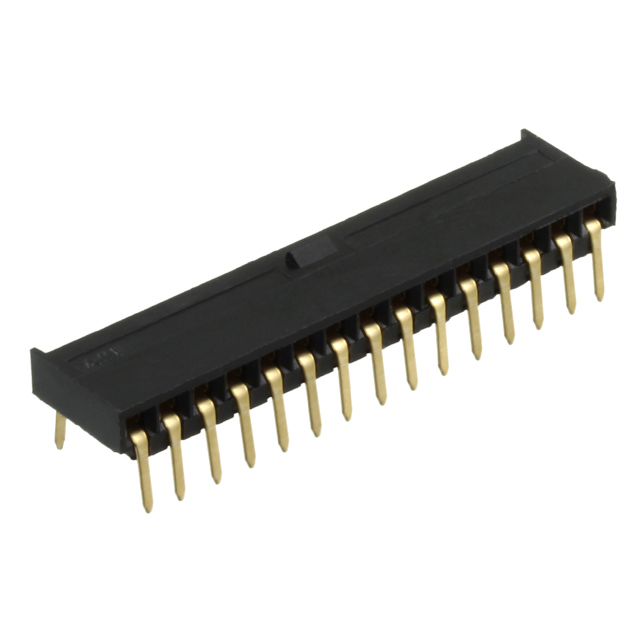

| Detailed Description | 15 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.138" (3.50mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 16.0µin (0.41µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
