Agastat Relays / TE Connectivity

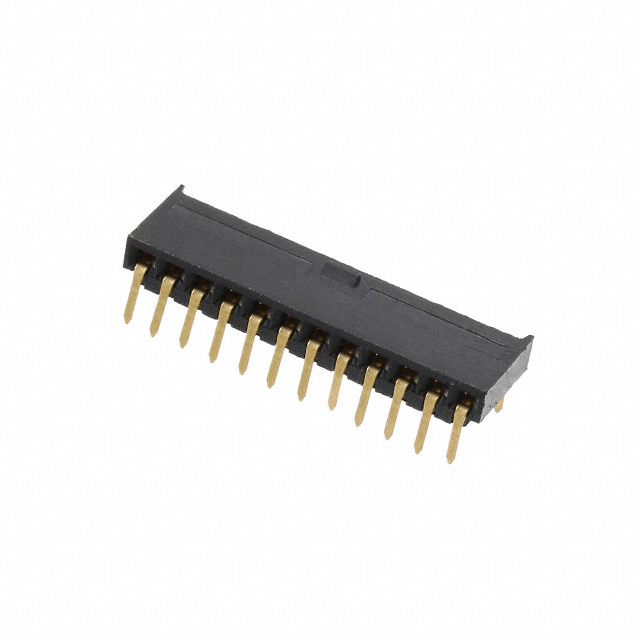

| Part Number | 280580-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | AMP MODU MODII HOR SR RCP 12 P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6704 pcs | Data sheet | 280580-2.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | AMPMODU Mod II |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Other Names | A118436 |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.157" (4.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | 12 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.138" (3.50mm) | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 16.0µin (0.41µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
