194018-1

Agastat Relays / TE Connectivity

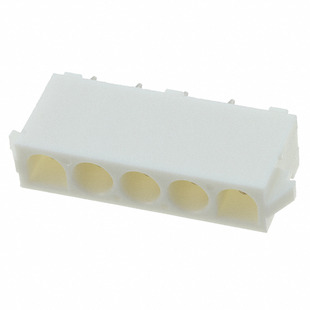

Image may be representation. See specifications for product details.

Product Overview

Part Number:	194018-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER PLUG 5POS VERT T/H
Datasheets:	194018-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6677 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6677 pcs

Reference Price (In US Dollars)

1 pcs: $4.501

10 pcs: $4.091

100 pcs: $3.478

500 pcs: $2.966

1000 pcs: $2.721

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$4.501

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 194018-1

Part Number	194018-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER PLUG 5POS VERT T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6677 pcs	Data sheet	194018-1.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Universal MATE-N-LOK II	Row Spacing - Mating	-
Pitch - Mating	0.250" (6.35mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	194018-1-ND 1940181 A112899
Operating Temperature	-55°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.550" (13.97mm)
Insulation Color	-	Ingress Protection	-
Features	Board Guide	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 5 position 0.250" (6.35mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Copper Alloy	Contact Length - Post	0.145" (3.68mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	200.0µin (5.08µm)	Contact Finish - Post	-
Contact Finish - Mating	Silver	Connector Type	Header
Applications	General Purpose
