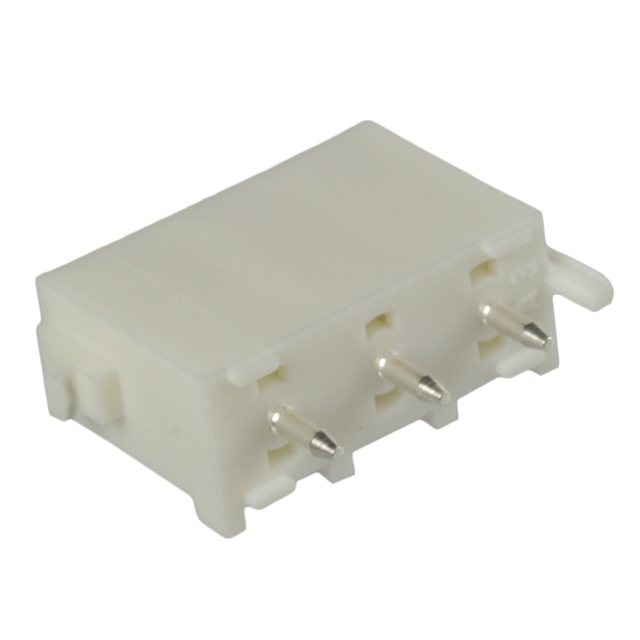

Agastat Relays / TE Connectivity
| Part Number | 194017-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PIN HEADER VERT MATE-N-LOK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10074 pcs | Data sheet | 194017-1.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | MATE-N-LOK II | Row Spacing - Mating | - |
| Pitch - Mating | 0.250" (6.35mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 1940171 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.550" (13.97mm) |
| Insulation Color | - | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole 3 position 0.250" (6.35mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.145" (3.68mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Silver | Connector Type | Header |
| Applications | General Purpose |
