1825011-7

Agastat Relays / TE Connectivity

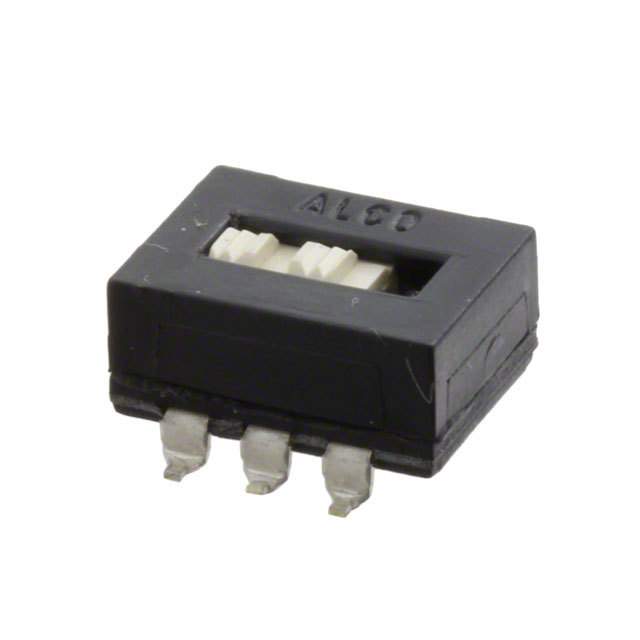

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1825011-7
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	SWITCH SLIDE DPDT 300MA 115V
Datasheets:	1.1825011-7.pdf 2.1825011-7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12127 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 12127 pcs

Reference Price (In US Dollars)

1 pcs: $2.518

10 pcs: $2.489

25 pcs: $2.459

50 pcs: $2.249

100 pcs: $2.159

250 pcs: $2.039

500 pcs: $1.799

1000 pcs: $1.619

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.518

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1825011-7

Part Number	1825011-7	Manufacturer	Agastat Relays / TE Connectivity
Description	SWITCH SLIDE DPDT 300MA 115V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12127 pcs	Data sheet	1.1825011-7.pdf 2.1825011-7.pdf
Voltage Rating - AC	115V	Termination Style	Gull Wing
Switch Travel	2.79mm	Switch Function	On-On
Series	ASF	Packaging	Tube
Other Names	1825011-7-ND 450-1841 ASF22L04	Operating Temperature	-40°C ~ 80°C
Operating Force	950gf	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	15,000 Cycles
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Tape Seal	Electrical Life	15,000 Cycles
Detailed Description	Slide Switch DPDT Surface Mount	Current Rating	300mA (AC)
Contact Timing	Shorting (MBB)	Contact Material	Copper Alloy
Contact Finish	Silver	Circuit	DPDT
Actuator Type	Screwdriver Slot	Actuator Material	Polyamide (PA46), Nylon 4/6
Actuator Length	Flush
