1825011-5

Agastat Relays / TE Connectivity

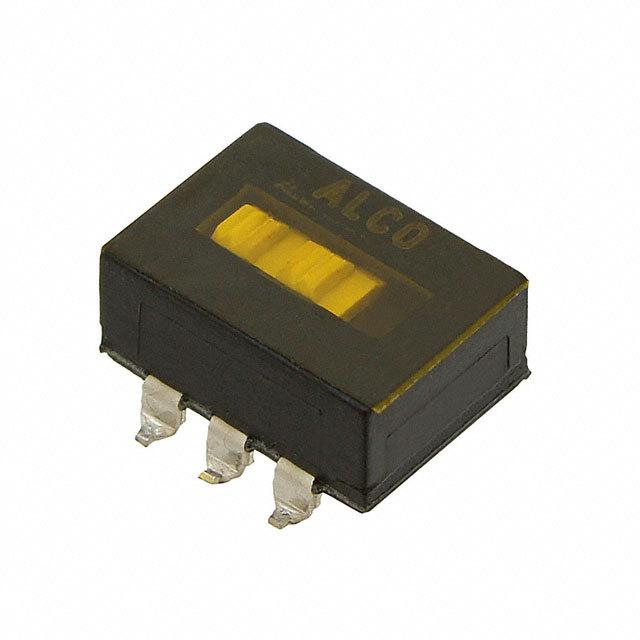

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1825011-5
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	SWITCH SLIDE DPDT 0.4VA 20V
Datasheets:	1.1825011-5.pdf 2.1825011-5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15258 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 15258 pcs

Reference Price (In US Dollars)

1 pcs: $2.131

10 pcs: $2.106

25 pcs: $2.081

50 pcs: $1.903

100 pcs: $1.827

250 pcs: $1.726

500 pcs: $1.523

1000 pcs: $1.37

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.131

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1825011-5

Part Number	1825011-5	Manufacturer	Agastat Relays / TE Connectivity
Description	SWITCH SLIDE DPDT 0.4VA 20V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15258 pcs	Data sheet	1.1825011-5.pdf 2.1825011-5.pdf
Voltage Rating - DC	20V	Voltage Rating - AC	20V
Termination Style	Gull Wing	Switch Travel	2.79mm
Switch Function	On-On	Series	ASF
Packaging	Tube	Other Names	1825011-5-ND 18250115 450-1799 ASF22GL04 ASF22GL04-ND
Operating Temperature	-40°C ~ 80°C	Operating Force	950gf
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	15,000 Cycles	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Tape Seal
Electrical Life	15,000 Cycles	Detailed Description	Slide Switch DPDT Surface Mount
Current Rating	0.4VA (AC/DC)	Contact Timing	Shorting (MBB)
Contact Material	Copper Alloy	Contact Finish	Gold
Circuit	DPDT	Actuator Type	Screwdriver Slot
Actuator Material	Polyamide (PA46), Nylon 4/6	Actuator Length	Flush
