1744489-8

Agastat Relays / TE Connectivity

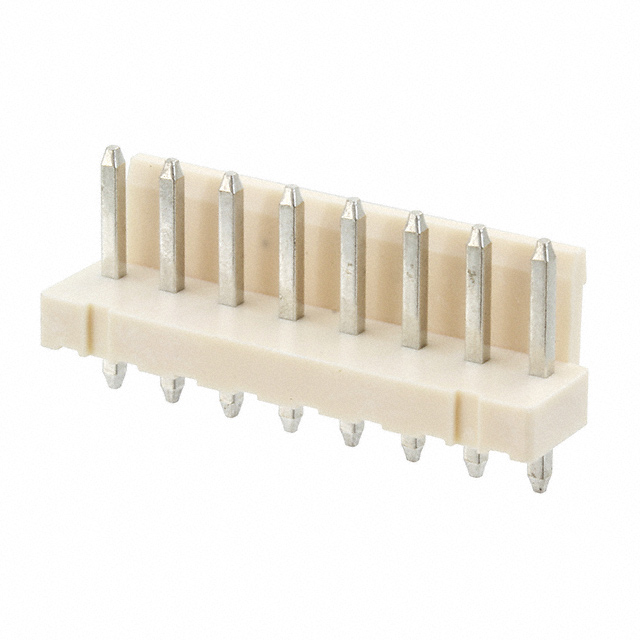

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1744489-8
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	3.96 EP HDR ASY 08P NO PEG, GW
Datasheets:	1744489-8.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	156233 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 156233 pcs

Reference Price (In US Dollars)

1 pcs: $0.206

10 pcs: $0.194

100 pcs: $0.148

500 pcs: $0.129

1000 pcs: $0.106

5000 pcs: $0.093

10000 pcs: $0.087

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.206

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1744489-8

Part Number	1744489-8	Manufacturer	Agastat Relays / TE Connectivity
Description	3.96 EP HDR ASY 08P NO PEG, GW	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	156233 pcs	Data sheet	1744489-8.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	Economy Power	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.575" (14.60mm)	Other Names	A116536
Operating Temperature	-25°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.127" (3.22mm)	Insulation Color	Natural
Ingress Protection	-	Features	Glow Wire Compliant
Fastening Type	Friction Lock	Detailed Description	Connector Header Through Hole 8 position 0.156" (3.96mm)
Current Rating	7.5A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.145" (3.68mm)	Contact Length - Mating	0.303" (7.70mm)
Contact Finish Thickness - Post	120.0µin (3.05µm)	Contact Finish Thickness - Mating	120.0µin (3.05µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose, Industrial, Lighting
