1744489-3

Agastat Relays / TE Connectivity

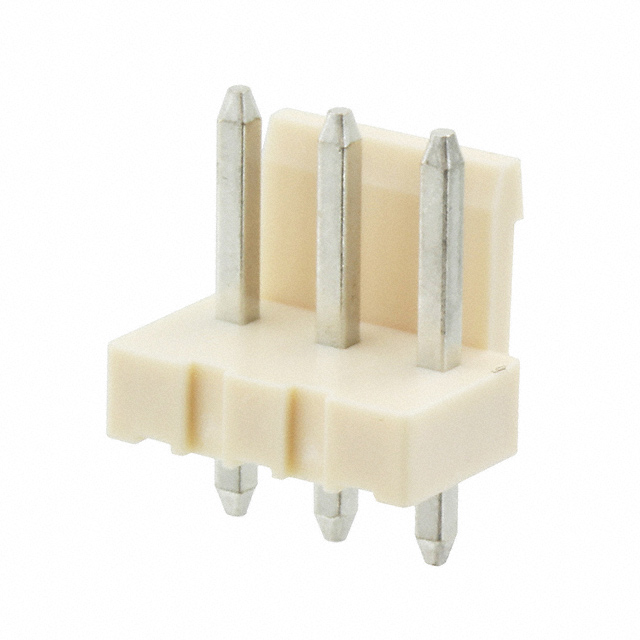

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1744489-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	3.96 EP HDR ASY 03P NO PEG, GW
Datasheets:	1744489-3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	325604 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 325604 pcs

Reference Price (In US Dollars)

1 pcs: $0.098

10 pcs: $0.091

100 pcs: $0.064

500 pcs: $0.055

1000 pcs: $0.045

5000 pcs: $0.039

10000 pcs: $0.036

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.098

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1744489-3

Part Number	1744489-3	Manufacturer	Agastat Relays / TE Connectivity
Description	3.96 EP HDR ASY 03P NO PEG, GW	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	325604 pcs	Data sheet	1744489-3.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	Economy Power	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.575" (14.60mm)	Other Names	A116531
Operating Temperature	-25°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.127" (3.22mm)
Insulation Color	Natural	Ingress Protection	-
Features	Glow Wire Compliant	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 3 position 0.156" (3.96mm)	Current Rating	7.5A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.145" (3.68mm)
Contact Length - Mating	0.303" (7.70mm)	Contact Finish Thickness - Post	120.0µin (3.05µm)
Contact Finish Thickness - Mating	120.0µin (3.05µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Lighting
