1-1747145-5

Agastat Relays / TE Connectivity

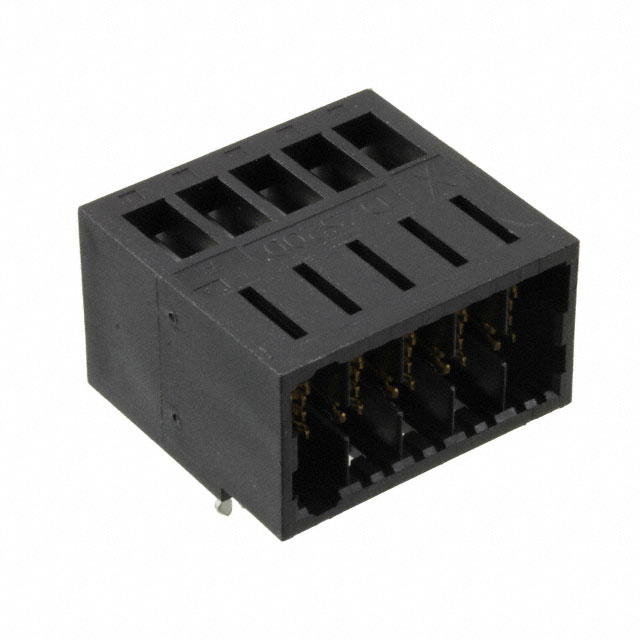

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1-1747145-5
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	DZ5200 HDR ASSY 4P 5.08MM PITCH
Datasheets:	1-1747145-5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10039 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10039 pcs

Reference Price (In US Dollars)

360 pcs: $2.919

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.919

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1-1747145-5

Part Number	1-1747145-5	Manufacturer	Agastat Relays / TE Connectivity
Description	DZ5200 HDR ASSY 4P 5.08MM PITCH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10039 pcs	Data sheet	1-1747145-5.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Dynamic DZ5200	Row Spacing - Mating	-
Pitch - Mating	0.200" (5.08mm)	Packaging	Tube
Overall Contact Length	-	Other Names	A120274
Operating Temperature	-55°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	22 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic, Polyester, Glass Filled	Insulation Height	0.630" (16.00mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide, Board Lock	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole, Right Angle 5 position 0.200" (5.08mm)	Current Rating	20A
Contact Type	Tab	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	0.150" (3.81mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	78.7µin (2.00µm)
Contact Finish Thickness - Mating	8.00µin (0.203µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose, Industrial
